Oil Distributor Quantified Decompression Oil Distributor Volumetric Centralized Lubricating Distriutors

Product Description

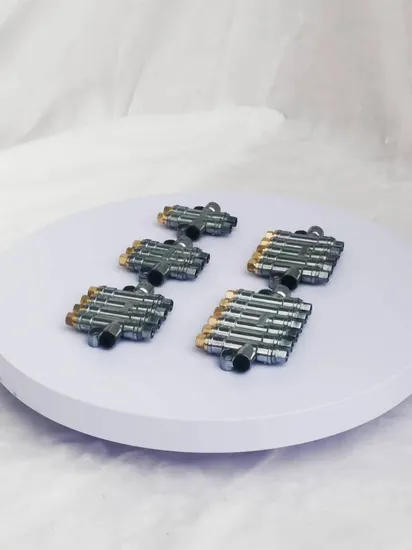

RH2 type inspecting volume- type distributor
RH2 type inspecting volume-type distributors fill the oil when the system pressure increases and inject the oil out when the system pressure decreases. It is suitable for inspecting volume type lubrication system. It can be deliveried dosing oil to each lubrication points according to the measured volume type distributor. It is widely used in printing machines, packing machines, machine tool and other machine equipment and ect.

Dimensions

specifications

Model	RH-22XX	RH-23XX	RH-25XX
Number of outlets	2	3	5
Common discharge capacity	0.03 0.06 0.1 0.2 0.3
Action guarantee pressure	8~ 12kgf/cm2
Recommended viscosity	20 ~ 500cst

Guide to order
Capacity Explanation:
03 means 0.03ml/time;06 means 0.06ml/time;10 means 0.1ml/time
20 means 0.2ml /time;30 means 0.3ml /time;40 means 0.4ml/time;
Example 1:RH-250306102030 indicates that it is an RH3 type distributor with five outlets whose discharge capacity is 0.03, 0.06, 0.1, 0.2, and 0.3 ml/time respectively.
Example 2:RH-2503 indicates that it is an RH3 type distributor with five outlets and outlets have the same capacity of 0.03ml/time.
Example 3:RH-220306 indicates that ti is an RH3 type distributor with two outlets whose discharge capacity is 0.03,0.06ml/time respectively.
Why Choose Us?
We are speicallized in Herg mechanical centralized lubrication systems in China for many years. We adheres to the strategic policy of "Because professional , we'll make better". It produces a complete range of lubrication device series products with stable quality,including resistance type, volumetric type, , spray type, progressive type and other oil and grease lubrication products. It is widely used in precision CNC equipment,plastic injection molding machines, printing, textile, elevator, mining, injection molding, die-casting, port, new energy, robot, construction machinery and other industries. We actively and independently develops and manufactures products that guide the development trend of the future lubrication industry. With Japanese - Cooperation experience and technology in the research and development, manufacturing and sales of professional lubrication systems, We serves for the requirements from different customers, including making the OEM products and machining. Our products have been sold to USA, Japan, Turkey, Indonesia, Brazil, Mexico , India and other countries.
