Biomass Briquette Machine Screw Sawdust Briquette Press Machine Straw Rice Husk Briquette Machine Wood Charcoal Briquette Machine

Product Description

Biomass Briquette Machines Screw Briquette Press Sawdust Rice HUSK Briquette Machine Wood Charcoal briquette making machine
Product Description

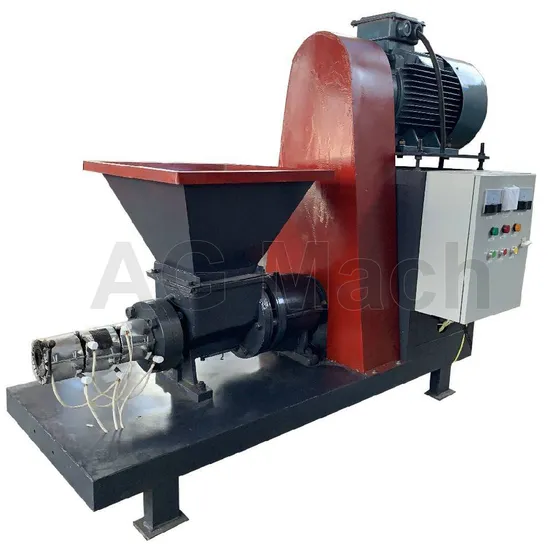

Introduction of Wood Briquette Press:
Wood Briquette Machine can process wood wastes materials into charcoal efficiently, which is one kind of green biomass fuel. It is good substitute of good raw wood or excellent coal, smokelss, long burning time. The briquettes can be used for warming, heating, drying fuel, grilling, etc.
Biomass Briquette Press can be driven by electric motor or diesel engine.
Specification
Specification of Biomass Briquette Machine:

Model	Capacity(kg/h)	Motor(kw)	Diameter of Briquettes (mm)	Dimension(m)	Weight(kg)
ZBJ-50A	250~300	18.5	48	1.7*0.65*1.4	560
ZBJ-50B	300~350	22	48	1.8*0.7*1.45	900
ZBJ-50C	350~400	30	48	1.95*0.9*1.55	1000

Production Process
Working Principle of briquette press machine:
The raw materials is compressed under high tempreture and pressure by the screw extruding. With the intrinsic attributes of the wood materials,
under high pressure, wood element in wood materials becomes plastic and makes the fine fiber combined, and then stick solid fuel is formed through
the moulding tube. The matural lignin content in the biomass liberated under high tempreture serves as glue in briquetting process, binding wood
materials together, so no need any adhensive.
Spare Parts
Spare Parts:
Thruster/heating coil Heating coil
Forming Tube with Different Shapes
Raw material&Final Products
Raw material for making briquettes:
Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks,
cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks,
groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell, etc
Wood Briquettes:
1) Biofuel briquette is 48mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.
2) The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
3) The available diameter could be: 48mm;
4) The available length could be: 20cm, 30cm, 40cm, 50cm
5) Final Briquette : Specific gravity: 1300-1900kg/m Calorific value: 4500-5000kcal/kg
Application
Application:
As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :
Boilers:
It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..
Furnace & Foundries:
It can be used for metal heating & melting (where melting point is less than 1000d/cel.)
Brick Kilns:
It is the total, substitute of steam coal.
Residential & Commercial Heating:
For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.
Biomass Wood Sawdust Briquette Making Line:
Packing & Delivery
