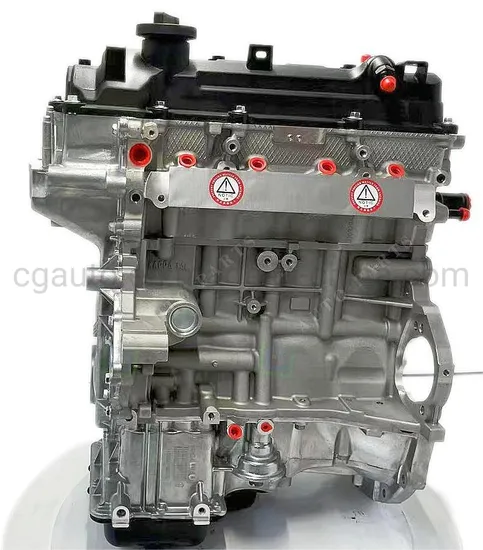

Brand New Car Engine Parts Complete 4 Cylinder Block G4LA Engine Assembly for Hyundai KIA Auto Engine System Parts
Basic Info.
Model NO.
G4LA
Certification
TS16949
Discharge Standard
Euro V
Cylinder
Single Cylinder
Fuel
Gasoline
Stroke
4 Stroke
Power
Hydraulic
Start
Electric Start
After-sales Service
Standard
Warranty
Standard
Transport Package
Neutral
Specification
88KG
Trademark
NONE
Origin
China
Production Capacity
300
Product Description
The 1.2-liter 4-cylinder Hyundai G4LA engine has been produced in India and Korea since 2008 and is installed in almost all compact models of the concern, such as the i10, i20 and Kia Picanto.
Product Parameters
| Production years | since 2008 |
| Displacement, cc | 1248 |
| Fuel system | distributed injection |
| Power output, hp | 78 (1st gen.) 85 (2nd gen.) |
| Torque output, Nm | 118 (1st gen.) 121 (2nd gen.) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 71 |
| Piston stroke, mm | 78.8 |
| Compression ratio | 10.5 |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no (1st gen.) Dual CVVT (2nd gen.) |
| Turbocharging | no |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 4.2 |
| Fuel type | 95 |
| Euro standards | EURO 4 (1st gen.) EURO 5 (2nd gen.) |
| Fuel consumption, L/100 km (for Kia Picanto 2012) - city - highway - combined | 6.7 4.5 5.3 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 82 (without attachments) |
The engine was installed on:
Hyundai i10 1 (PA) in 2008 - 2013; i10 2 (IA) in 2013 - 2019; Hyundai i20 1 (PB) in 2008 - 2014; i20 2 (GB) in 2014 - 2020; Kia Picanto 2 (TA) in 2011 - 2017; Picanto 3 (JA) since 2017; Kia Rio 3 (UB) in 2011 - 2017; Rio 4 (YB) since 2017; Kia Stonic 1 (YB) since 2017. Comments by Customer
