Animal Manure Dehydrator Cow Manure Dewatering Machine Pig Manure Separator

Product Description

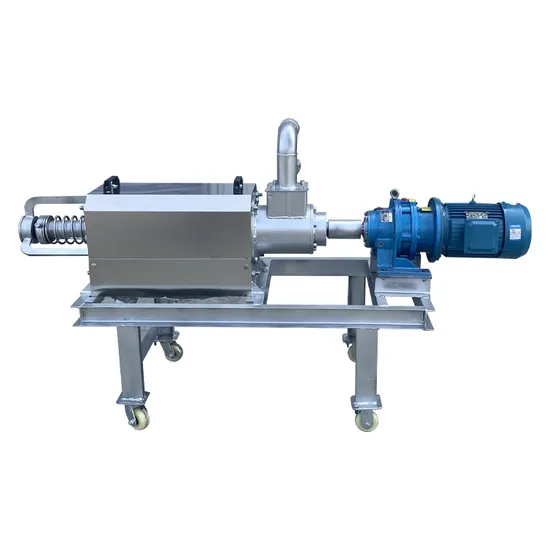

Screw Press Type Animal Manure Squeezing Dewatering Machine
Working principle:
the principle of solid-liquid separation machine for the screw extrusion solid-liquid separation technology, the main components are: machine body, screen, extrusion winch, decelerating motor, unloading device and other components. When the cutting feed pump pumps the mixed liquid through the pipeline to the solid-liquid separator, the separator starts, and the extrusion capstan pushes the mixed liquid to the front of the machine body, while constantly increasing the pressure at the leading edge, forcing the moisture in the material to extrude out of the screen, out of the drain pipe, the work of the extruder is continuous, its materials continue to pump into the body, the front edge of the pressure is increasing, when a certain extent, will be unloaded to open the mouth, extrusion mouth, to achieve the purpose of extrusion material, in order to master the speed and moisture content of the discharge, you can adjust the adjustment device in front of the host to achieve a satisfactory and appropriate state of discharge. Product Description
Product Parameters

Models	JWM180 spiral	JWM200 spiral	JWM220 spiral
Voltage(V)	200V/380V	380V	380V
Main power(KW)	4	5.5	5.5
Pump power(KW)	3	3	3
Inlet/overflow outlet(mm)	76	76	76
Drain(mm)	102	102	102
Material	Stainless steel	Stainless steel	Stainless steel
Weight(KG)	210	330	380
External dimensions(mm)	1650*1300*800	1950*1400*800	2150*1400*800
Pumping raw feces(m³/h)	20	20	25
Out of the dry shit(m³/h)	5	7	15
Size of net bucket(mm)	180*600	200*600	300*600
