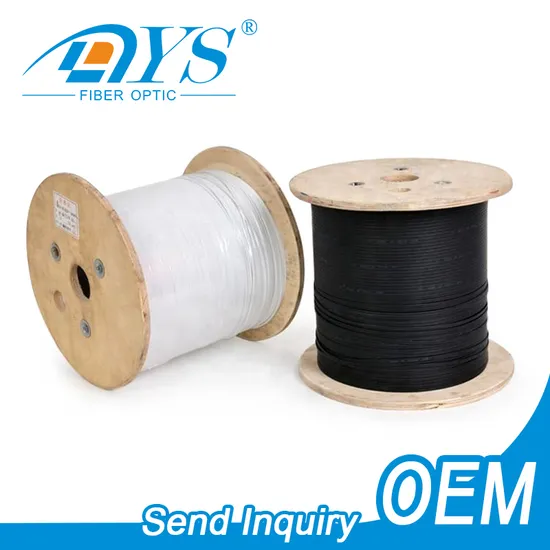

FTTH Fiber Drop Cable 1 2 Core Outdoor Indoor Fiber Optic Cable

Product Description

ftth fiber drop cable 1 2 Core Outdoor Indoor Fiber Optical Cable
Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber's premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types.
Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance.
Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.
Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.
FEATURES
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevant standards;
The mechanical characteristics meets the requirements of relevant standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Fiber count	1/2/4/6/8/12
Color Of fiber	Blue Orange Green Brown
Fiber Type	G652D/G657A1/G657A2
Strength member	Steel wire/FRP/KFRP
Supporting messenger wire	1.0MM*x1 steel wire
Outer sheath	LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions	2.0( Height) × 5.0W ± 0.1 mm(width)
Operation temperature range	-20 ºC to + 70 ºC
Installation temperature range	-20 ºC to + 60 ºC
Transport and storage temperature range	-20 ºC to + 70 ºC
Tension Load (N)	Short term :800N Long term :500N
Crush Load(N)	Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius	30 x OD
Minimal operation bending radius	15 x OD
Cable marking	The marking length 1meter apart , as required

Company Profile FAQ
Q1. Do you provide OEM ODM service ?
Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ?
Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ?
Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
