Customized High-End Soft Forming Edge Bander Sealing Edge Banding Machine Price

Product Description

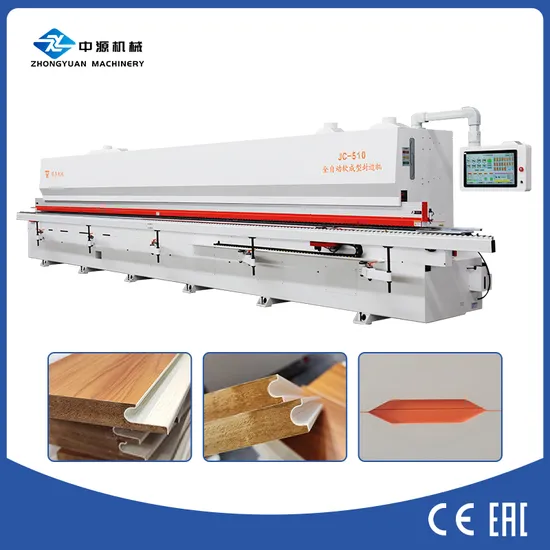

JC-510 Automatic Soft Forming Edge Banding Machine
The utility model relates to the application of ltalian minimaliststyle furniture door panels, which are mainly used for
high-endcustom cloakroom, cabinet doors, kitchen and bathroomrooms, thin side cabinets, hotel furniture, etc......Break
theshackles of paint on craftsmanship. 21 Kinds of Craft Shapes
Oblique straight edge; full-pass J-shaped; C-shaped; half-passJ-shaped front, middle, and rear; diamond large size
left/right,small size leftright; half-pass right circle, first half-pass left circlemiddle circle; water drop large size
left/right, small size left/right:diamond large size,small size; arc large size, small size.
Soft Forming Edge Banding Machine Workflow
Straight edge pre-milling,Form milling,Arc gluing,Edge banding and gluing,Facade bonding,Forming bonding,Rough trimming,End cutting,Fine-trimming,Scraping,Polishing.

Model	JC-510	Supply voltage	380V/50HZ
Board thickness	18mm,22mm,25mm	Air pressure	0.6-0.8Mpa
Minimum board size	≥380*150mm	External vacuum	Vacuum port 150mmx3pcs
Types of edge banding	PVC	Volume of gas storage tank	5L+5L
Edge banding thickness	Soft forming 0.52-0.8mm Oblique straight edge 0.5-2mm	Feed speed	9m/min
Edge banding width	5-70mm	Operating temperature of glue pot	110ºC-210ºC
Hot melt adhesive type	EVA	Dimensions	9620*1310*2060mm
Glue pot capacity	2600ml	Electric lift	380V 0.37KW
Total power	72kW	Total milling power	38.9kW

Product Features
Detailed Photos
Product Application
Product Display
Packaging & Shipping
Company Profile
Shandong Zhongyuan Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry. The company's factory covers an area of more than 30,000 m2, with more than 200 employees, more than 20 engineers of various types,more than 100 sales, an exhibition hall area of more than 1,500 m2, and a warehouse area of more 4,000 m2, providing customers with the best quality service as all times.* In-depthcooperation with 8000 companies.
* 100 patents and certificates.
* Factory more than 30000 square meters.
* After sale Service experienced and knowledgeable team of technical support.
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the
equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
