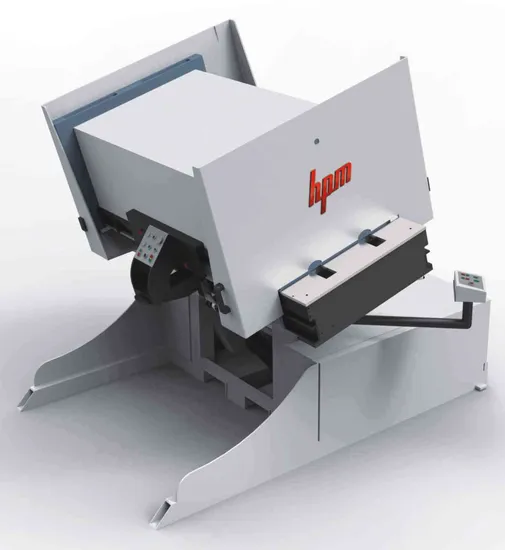

Full Automatic Multifunctional Pile Turner with Aligning/Air Blowing/Vibrating
Basic Info.
Model NO.
SFZ 1300/1650/1800 LA
Driven Type
Electric
Certification
ISO9001, CE
Automatic Grade
Semi-Automatic
Condition
NEW
After-Sales Service Provided
**
Type
Printing-down Machine
Plate Size
1300/1650/1800mm
Color
White
Pattern
Heavy Type
Features
Turner/Rotate/Air/Joggger
Transport Package
Export Standard Wooden Case
Specification
SFZ 1300/1650/1800 LA
Trademark
HPM
Origin
China
HS Code
8441100000
Production Capacity
1000 Unit/Year
Product Description
PAPER PILE TURNER SFZ1300/1650/1800 LA
DESIGN FEATHERS:
1.Very stable steel frame design
2.Attractive design
3.Underrun option for pallet truck
4.Closed,single part,strong vibrating table pallet
5.Maintenance-free slewing ring and cylinder bearing
6.Double air nozzles with overload slipping clutch can be controlled at operating console continuously
7.Stop-forward,reverse run of the air nozzle for removing single bow
8.Strong radial blowers with large air quantity
9.Powerful slipping device with direct drive
10.Stable collision and maintenance-free side stop with very large travel
11.Impact-free dropping of the ventilated stack through damped swivel cylinder
12.Hydraulic unlocking of the lifting frame
13.Optimal working height through relocation of pivot point
14.Highest operating comfort through two operating consoles
TECHNICAL PARAMETER
| Model | SFZ1300LA | SFZ1650LA | SFZ1800LA |
| Max. Width of plate | 1300mm | 1650mm | 1800mm |
| Max. paper size(L*W) | 1200*900mm | 1550*1100mm | 1700*1300mm |
| Min. paper size(L*W) | 500*400 mm | 600*500mm | 600*500mm |
| Max. paper height(including two plates) | 1600mm | 1600mm | 1630mm |
| Min. paper height(including two plates) | 700mm | 800mm | 850mm |
| Max. Lifting capacity | 2000kg | 2500kg | 3000kg |
| Rated voltage | 380/220V | 380/220V | 380/220V |
| Gross power | 12KW | 31KW | 31KW |
| Net weight | 3400KG | 4700KG | 5100KG |
| Machine size(L*W*H) | 2920*2020*2220mm | 3450*2410*2430mm | 3650*2560*2630mm |
| Packing size(L*W*H) | 3100*2200*2100mm | 3460*2500*2100mm | 3660*2650*2100mm |
| No | Name | Brand, specification & model | Origin of brand |
| 1 | Servo driver | Inovannce | China |
| 2 | Vibration Motor | AMP/OLI-WOLONG | China |
| 3 | PLC | Inovannce | China |
| 4 | Air switch | TE | France |
| 5 | AC contactor | TE | France |
| 6 | Button | TE | France |
| 7 | Photoelectric sensor | FOTEK | China |
| 8 | Frequency Converter | Inovannce | China |
| 9 | Switch power | TE | France |
| 10 | Power switch | CANSEN | China |
| 11 | Miniature Relay | TE | France |
| 12 | Hydraulic Block | WAISN | China |
| 13 | Drive motor | BOSCH/LICHUAN | Germany/ China |
| 14 | connector | Weidmuller | Germany |
| 15 | Touch screen | MCGS | China |
FUNCTIONS
1.Automatic turning and rotation functions.
2.The touch screen has integrated different operation functions, and can be used for setting parameters directly, conveniently and quickly.
3.Auto and manual modes can be switched based on user's operation requirements.
4.The touch screen is integrated with functions such as turning, rotation, clamping, opening and flap alignment.
5.Servo backup plate is used to sense paper pile automatically and finish alignment of paper pile quickly.
| Functions | Function Characteristics |
| Blowing | Stepless adjustment of air blowing + Settings of blowing times |
| Vibration | Stepless adjustment of vibration |
| Air Nozzle | Stepless adjustment of speed |
| Position selection | 180° rotary feeding + Home position feeding |
