Gravity Disc Thickener for Paper Pulp Making Machine

Product Description

1, High quality
2, High cost-effective
3, Sincerely cooperate
Gravity Disc Thickener Machine
Application:
Gravity disc thickener is mainly used for washing and concentrating low concentration pulp for pulping and paper making industry.
It works in this way: gravity dewatering by water level difference between pulp level outside disk filter and white water level inside dick; after pulp with concentration of 0.8-1.2% entering into pulp tank, it does not absorb on sector plate , white water in the plate will flow from headrace to both sides of hollow shaft and is discharged out of wall board.
Pulp on the plate will be dropped by high-pressure water washing , when liquid level of pulp is higher than flashboard of control valve, it will overflow to pulp tank and be discharged with pulp concentration of nearly 3-6% , and pulp concentration and production capacity can be regulated by rotation speed of main axis.

Design Feature: Higher efficiency and less space required. Disc sector is made of stainless steel with excellent corrosion resistance . Due to the structure of disc sector , the filtering area is large , allowing filtrating large amount of white water when operating. Compared with the consistency by the common cylinder wire thickener , the consistency of white water filtrated is lower.
Main Technical Parameter:

Model		ZNP2510	ZNP2512		ZNP2514	ZNP2516		ZNP3510	ZNP3512		ZNP3514	ZNP3516	ZNP3518
Diameter Of Disc(mm)		2500	2500		2500	2500		3500	3500		3500	3500	3500
Number Of Disc(n)		10	12		14	16		10	12		14	16	18
Nominal area(m²)		75	90		105	120		150	180		210	240	270
Inlet Consistency (%)		0.8-1.2
Outlet Consistency(%)		3.5-4.5
Capacity(t/d)	ONP	0.9-1.2
	AOCC	1.5-2.4
Motor Power(KW)		11		15			18.5			22		30

Remark: The yield will change due to different types of pulp, consistency and other factors. The capacity in the table is only for selection.

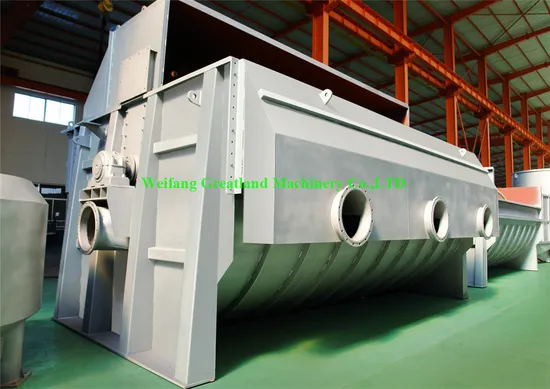

PHOTOS:
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
