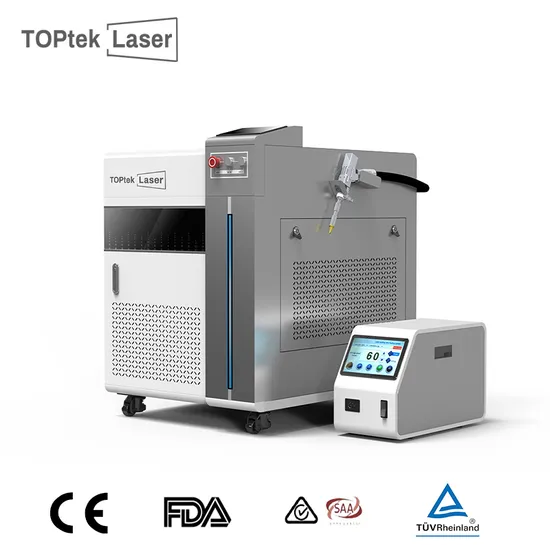

Toptek 1.5-3.0kw Handheld Fiber Laser Welding Machine Wobble Laser Welder

Product Description

Product Description
Laser welding process is to melt the connecting area by a very high-energy and dense beam with a large amount of heat. The single module optical fiber laser source provides consistent and stable power and high quality of laser beam.
Fiber laser welding machine is an advanced welding technology which is a perfect replacement of traditional electric welding, MIG and CO2 welding.
MAX is currently largest manufacturer of fiber laser sources in the world. Now we chose the latest generation fiber source,protected against beam reflection.The latest model of the resonator achieves ultra-high power output, which translates into optimal performance and excellent weld quality.The photovoltaic conversion efficiency is more than 30%.

1) Professional matching laser welding machine, small size, compatible with cabinets of various manufacturers;
2) A full range of environmentally friendly refrigerant systems;
3) One-button intelligent control, convenient operation, ISO9001 quality management system, fault code query system;
4) Integrated design, convenient maintenance;
5) Stable and reliable performance, low failure rate, energy saving and power saving;


The wobble welding joint is independently developed, with wobble welding mode, adjustable spot width and strong welding fault tolerance, which makes up for the disadvantage of small laser welding spot, expands the tolerance range and weld width of machined parts, and obtains better weld line forming. The weight for the welding head is only 0.8 kg.

NO.	Item	LW-1500	LW-2000	LW-3000
1	Laser Power	1500W	2000W	3000w
2	Laser Wavelength	1070 NM	1070 NM	1070 NM
3	Fiber Cable length	10 meters	10 meters	20 meters
4	Cooling method	Water	Water	Water
5	Positioning method	Red laser dot	Red laser dot	Red laser dot
6	Welding speed	0-200mm/s	0-250mm/s	0-250mm/s
7	Voltage	220V 50/60 HZ	220V 50/60 HZ	380V 50/60 HZ
8	Power consumption	7KW	9KW	13KW
9	Air pressure	10-15L/min	10-15L/min	10-15L/min
10	Currency	30A	40A	34A
11	Welding thickness	0~4mm	0~6mm	0~8mm
12	Laser gun	motor wobble	motor wobble	motor wobble
13	Focus length	150mm	150mm	150mm
14	Cryogenic water flow	13L/min	13L/min	13L/min
	Chiller's water	Purified water or deionized water
15
16	Protective gas	Argon gas could meet most of the requirement
17	Welding wire diameter	0.8/1.0/1.2/1.6mm

Comparation between portable laser welding and other welding
No.	Items	Laser welding machine	Other welding
1	Working speed	5-10 times faster	Slow
2	Operator	No need experience,1 hour training is enough	Must be experienced
3	Operation safety	Guaranteed	No guarantee
4	Welding seam	Almost invisible	Big seam
5	Welding surface	Very smooth	Rough and scars
6	Post processing	No need polishing	Polishing
7	Thermal deformation	Very small	Big
8	Working enviroment	Environmental friendly	Much harmful gas,slag,light and heat
9	Welding firmness	Equal or more than base metal	Less than base metal
10	Welding precision	Spot/seal/angle/stitch/arc welding for precision parts	Ok for flat surface
11	Multi-function	Laser cutting,welding and cleaning workable	No
12	Wobbing welding	Automatic	No
13	Total cost	70% less	Labor cost,gas and consumables

Applications
Company Profile
TOPTEK Laser is an innovative high-tech manufacturer specializing in Intelligent Laser Solutoins (Laser automatic prodution line, Laser welding, Laser cutting, Laser cleaning, 3D Automation welding, Robot Automation station, Laser marking ).
Our mission is to provide Reliable Industrial Solutions to make your production smarter, faster and more cost-efficient with minimum human labor required.
After 10+ years development, TOPTEK are supporting 10,000+ global parnters in customiztion, marketing, local service to enhance their international competitiveness .What we support ?
1. Customized technical solutions (OEM, ODM),
2. Reliable service timely,
3. Strong marketing (Online/Offline),
4. Lifetime service and upgrade,
5. Financing,
6. Demo and spare parts stocks
Packaging & Shipping
Customer visit
Certifications
After Sales Service
1. Make technical solutions as per customers' real application,
2. Discuss all the benefit, cost and risks with customers,
3. Engineer online support within 30 minutes,
4. Engineer support on-site,
5. Upgrade customers' technical capacity,
FAQ
FAQ
Q1: Is your company a manufacturer or a trading company?
A1: We are a manufacturer, now in SHANDONG, China. Committed to providing For the majority of users to provide economic, high quality laser equipment. Welcome to our factory.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3: What can you buy from us?
A3: Laser welding machine, High precision Fiber laser cutting machine, Laser marking machine,3D laser engraving machine

Q4: How long does it take to learn the laser? A4: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
Q5: What should I do when something goes wrong with the laser?
A5: We offer a 24 months warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
Q6: Will the laser machine be safe during transport?
A6: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
For more detailed information, please contact us
