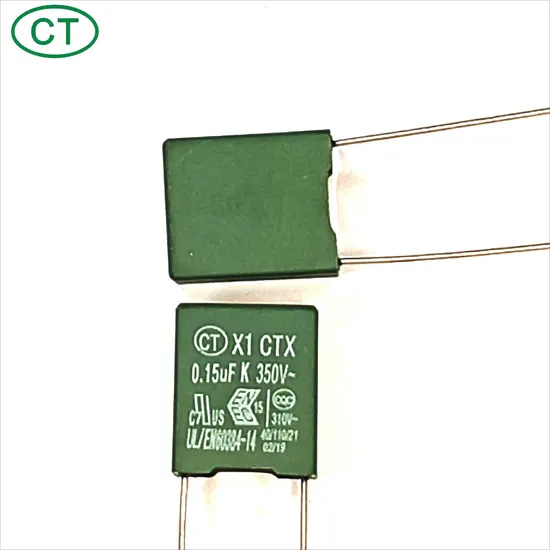

0.15UF 350V. AC Metallized Film Capacitor

Product Description

Product Parameters
Specifications

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in flame retardant(UL94V-0) plastic case and epoxy resin end seal
Leads	Radial leads of tinned wire
Climate Category	40/110/20
Capacitance versus Rated Voltage(UR)	0.0047uF~1.0uF(X1 Class) 0.0047uF~10.0uF(X2 Class)
Capacitance Tolerance	J=±5% K=±10% M=±20%
Dissipation Factor(Tangent of Loss)	≤0.1% at 1KHz and 20ºC ≤0.3% at 10KHz and 20ºC
Voltage Proof	T-T 1634V.DC 60Sec. T-C 2260V.AC 50/60Hz 60Sec.
Insulation Resistance	C≤0.33uF IR≥30,000MΩ C>0.33uF IR≥10,000MΩ/uF

Packing and Delivery

Package Size	Standard
Pachage Gross weight	Standard

Customization

Customized logo	Customized packaging	Graphic customization
Min. Order: 1000pcs	Min. Order: 1000pcs	Min. Order: 1000pcs

For more customization details, message supplier
Features
-Provides interference suppression, all safety approval.
-Overvoltage stress withstanding.
-Self-healing properties.
-Excellent flame retardant function.
-High voltage, applicable to the lighting and lamp.
Applications
Use in line bypass, antenna coupling, across-the-line available for EMI filter. Switching power supply applications. Business machines appliances, such as: typewriters, adding machines, computer displays and monitors. Household appliances, such as : mixers, fans, coffee grinders, audio and TV circuits. Thyristor and triac appliances , such as: dimmers. Dimensions

Capacitance	Rated- voltage	PVC wire(W±0.75)dimension in mm
uF	V.AC	W±0.5	H±0.5	T±0.5	P±1	d±0.05
X1/X2 0.0047	330/350/380	13	11	5	10	0.6
X1/X2 0.0047	330/350/380	18	10	5	15	0.8
X1/X2 0.01	330/350/380	13	11	5	10	0.6
X1/X2 0.01	330/350/380	18	10	5	15	0.8
X1/X2 0.015	330/350/380	13	11	5	10	0.6
X1/X2 0.015	330/350/380	18	10	5	15	0.8
X1/X2 0.022	330/350/380	13	11	5	10	0.6
X1/X2 0.022	330/350/380	17	11	5.5	15	0.8
X1/X2 0.033	330/350/380	13	11	5	10	0.6
X1/X2 0.033	330/350/380	18	10	5	15	0.8
X1/X2 0.047	330/350/380	13	12	6	10	0.6
X1/X2 0.047	330/350/380	18	10	5	15	0.8
X1/X2 0.068	330/350/380	12	14	8	10	0.6
X1/X2 0.068	330/350/380	17	11	5.5	15	0.8
X1/X2 0.082	330/350/380	18	12	6	15	0.8
X1/X2 0.1	330/350/380	13	16	8	10	0.6
X1/X2 0.1	330/350/380	18	13.5	6	15	0.8
X1/X2 0.15	330/350/380	17	15.5	7.5	15	0.8
X1/X2 0.18	330/350/380	17	15.5	7.5	15	0.8
X1/X2 0.22	330/350/380	18	16.5	8.5	15	0.8
X1/X2 0.22	330/350/380	26.5	16.5	7	22.5	0.8
X1/X2 0.33	330/350/380	17	19	11	15	0.8
X1/X2 0.33	330/350/380	26.5	17	8.5	22.5	0.8
X1/X2 0.47	330/350/380	26.5	19	10	22.5	0.8
X1/X2 0.47	330/350/380	31.5	20	11	27.5	0.8
X1/X2 0.56	330/350/380	26	22	12	22.5	0.8
X1/X2 0.56	330/350/380	31.5	20	11	27.5	0.8
X1/X2 0.68	330/350/380	26	22	12	22.5	0.8
X1/X2 0.68	330/350/380	31.5	20	11	27.5	0.8
X1/X2 0.82	330/350/380	31.5	22.5	13	27.5	0.8
X1/X2 1.0	330/350/380	31.5	22.5	13	27.5	0.8
X1/X2 1.0	330/350/380	37	24	13.5	32.5	0.8
X2 1.5	330/350/380	37	26.5	16	32.5	0.8
X2 1.8	330/350/380	37	26.5	16	32.5	0.8
X2 2.2	330/350/380	37	28.5	18	32.5	0.8
X2 3.3	330/350/380	37	34	22	32.5	0.8
X2 4.0	330/350/380	51	30.5	20	47.5	0.8

Capacitance	Rated- voltage	PVC wire(W±0.75)dimension in mm
uF	V.AC	W±0.5	H±0.5	T±0.5	P±1	d±0.05
X2 4.7	330/350/380	51	34	22	47.5	0.8
X2 5.6	330/350/380	51	34	22	47.5	0.8
X2 6.8	330/350/380	51	35	24	47.5	0.8
X2 7.5	330/350/380	51	35	24	47.5	0.8
X2 8.2	330/350/380	51	35	24	47.5	0.8
X2 9.0	330/350/380	51	35	24	47.5	0.8
X2 10.0	330/350/380	51	43.5	29	47.5	0.8

Company Profile
Wuzhi (Dongguan) Technology Co., Ltd., established in 2019, is one of the factorys of Cheng Tung Industrial Co., Ltd. (CT), which was found in 1998. In the past 26 years, CT has concentrated on production of special high quality and high reliability capacitors to serve the capacitor market worldwide with both high volume catalog styles and special designs.
Our business operation policy is "Reliability", "Initiative" and "Innovation". Our quality assurance policy is "To reach the quality target by forward-looking investment", "To growth with customers' satisfaction" and "To improve product quality at any time". Such policies have been taught to our staffs and employees requesting them to pay keen attention on top quality control and innovation of technical know-how, as well as to render best after sale servies to create a good image and reputation of the company.
CT is one of the leading suppliers of X1/X2 film capacitor products capable to suppress electromagnetic interference(EMI) and electromagnetic compatibility(EMC) which are key components in circuit breakers (spark killer), antenna coupling and high by-pass etc.
Safety capacitors are grouped into a number of different classes. For X type capacitors there are class X1, X2 and X3. The class X1 safety capacitors manufactured by CT meet and are certified to applicable international safety standards, such as UL, CUL, ENEC, KC, CQC...etc. safety standards of multiple countries.
Features of class X1 safety capacitors:
1. Surge protection up to 4kv (much higher and safer than 2.5kv of class X2);
2. Small size and high capacitance; Price is cheaper than X2, very competitive;
3. For line desigh, X1 can substitute X2, but X2 can not be applied on the lines of class X1, because of surge voltage of X1 is much higher than that of X2.
CT is not proud of such achievement. In order to keep pace with and meet the ever increasing industrial improvement and the market demands, CT is endeavoring to research and develop new products. For this purpose, CT has established a new brother company, Sheng Chang Technology Co., Ltd. in August 2002. Specially designed and made capacitors to meet the customers' specific needs are our specialty to serve our customers. Moreover, our first China factory (Cheng Tung Electronic SHENZHEN Co., Ltd.) has officially manufacture X1 class capacitors since July 2003, and we established our second China factory (ZHONGSHAN JINGANG Electronic Science and Technology Co., Ltd.) in May 2013, specially manufacture capacitors for large current&high pulse circuit to meet cuatomers' requirement.
At present, the samples of the new products of class "X+Y dual satety capacitors" developed by CT are already obtained UL&ENEC safety approval, and the price offer is more competitive to those products imported from abroad.
CT can supply a wide range of safety capacitors meet and are certified to applicable international safety standards of multiple countries(including UL, CUL, ENEC...etc.) with capacitance range from 0.0047uF~52uF, the rated voltage range of 310/330/350/380/440/480/500 V.AC and the temperature range from -40ºC~+110ºC. Your purchase of our products will be highly appreciated and much welcom!
At november, 2013, our company obtained the world's first ENEC certificate, awarded by UL Chief Operating Officer Mr.Milan Dotlich in person.
In order to meet the ever increasing market demands, the new factory in Taiwan, Taoyuan, BAde Dist. invested by CT has been completed at June 2016, and ready to serve all of our great customers.
Packaging & Shipping

Workshop
FAQ

Q1. Can I have a sample order for film capacitor?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Is it private brand or contract manufacturing?

A: CT is our own brand, and have a complete production line of the factory.

Q3. What about the lead time?

A: Sample needs 4-7 days, mass products needs 3-4weeks.

Q4. Do you have MOQ limit for film capacitors?

A: Low MOQ, depending on product specifications.

Q5. How to place an order?

A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly you confirm the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. How do you ship the goods and how long does it take to arrive?

A: If you do not have a designated forwarder, then we will choose express delivery or find a trusted forwarder. It usually takes 4-7 days to arrive. Airline and sea shipping also optional.

Q7. Is it OK to print my logo on the products?

A: Yes, please inform us formally before our production and confirm the design firstly based on our sample.

Q8. Do you have after-sales service for your products ?

A: Of course, any product quality problems after receiving the goods, our after-sales team will actively communicate with you until the problem is solved.
