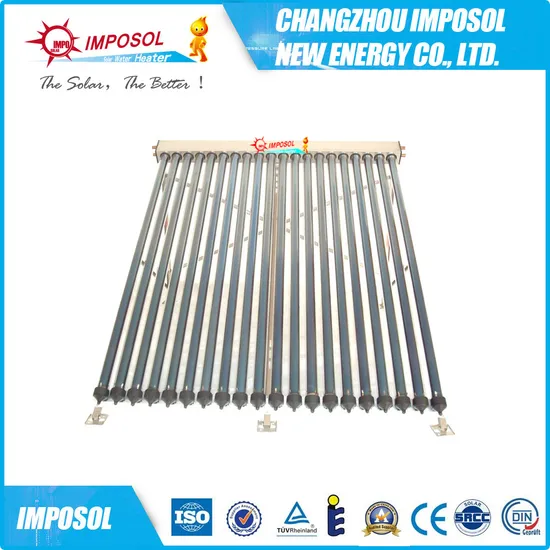

Construction of Heat Pipe Solar Water Heater Collector

Construction of Heat Pipe Solar Water Heater Collector

US$150.00 1 Set (MOQ)

Basic Info.

Model NO.
ReBa
Working Temperature Range
Medium Temperature
Type
Vacuum Solar Collector
Application
Solar Thermal
Pipe Material
Copper
Material of Manifold
Aluminum Alloy
Thickness of Manifold
2.0mm
Testing Pressure
11bar
Insulation
Rock Wool
Absorption Coefficient
>96%
Diameter of Tube
58mm
Tube Quantity
10-30
Frame Angle
20-80 Degree
Transport Package
Carton and Wooden Box
Specification
ISO9001, CE, Solar Keymark, CE
Trademark
Imposol
Origin
China
HS Code
8419901000
Production Capacity
100 Sets/Day

Product Description

Construction of solar water heater
Specifications:
1) inner manifold: Copper header
2) outer manifold: Stainless steel SUS304-2B
3) Insulation: Rock wool
4) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
5) Optimal installation angle: 20-80 degree
6) Maximum Operating Pressure: 0.6-0.8 MPa
7) Optimal flow rate: 0.1L/min/tube - 0.026G/min/tube
8) Glass tube dimensions: 47mm x 1.5m x 10-36 pcs 58mm x 1.8m x 10-36 pcs
9) Heat pipe material: Copper
10) Heat preservation: 72hrs
11) Hail resistance: 25mm
12) Inlet & Outlet: Ø 22 or 3/4 inch
Detailed Product Description:
1) solar collector is designed with pressure up to 0.8Mpa.
2) Easy to use, also convenient to install
3) Can be put in the courtyard, on the roof or balcony
4) Inlet water hole connects to the tap water, and the outlet hole connects to the tap water, and the outlet hole produces pressure hot water directly
5) Efficiency: The advantage of solar tubes is that insulate the inner tube from heat loss. This means that once heat is absorbed, it is transferred to the water in the manifold, and not lost to the outside environment. This is the key difference between solar tubes and flat plate solar collectors: The insulative properties. Combined with heat transfer efficiency of the heat pipe, the collector can deliver excellent heat output all year round.
6) Aesthetics: Solar collector is designed to be low profile, sitting closed to the surface of the roof. Tubes are black and so blend in nicely with most roof colors.
7) Heat pipe has its special principle and function, and no water in the pipe. If one of the pipe is broken, the heat collector still could be used normally.
Certificate: SRCC, Solar Keymark, CE and ISO9001
Water tank Inner tank: stainless steel SUS304-2B,0.4mm thickness, 360mm
Outer tank: galvanized steel,0.4mm thinckness, 470mm
Insulation: polyurethane foaming, 50mm thickness
Working pressure: 0 Bar
Heat preservation: 72 hours
Capacity:180/200/240/300/360L
Vacuum tube Structure: all-glass double-tube co-axial structure
Material: high borosilicate glass 3.3
Coating: AL-N/SS/CU
Sediment method: 3 target magnertron sputtering plating
External pipe: Φ58mm, Internal pipe: Φ47mm, Length:1800mm, thickness:1.6mm
Vacuum tightness: P≤5.0*10-3Pa
Absorption Rate: 93%~96% (AM1.5)
Emission Rate: 4%~6% (80°C±1.5°C)
Copper coil Material: red copper
Length:18/20/24/30/36m,thinkness:1mm, Φ10mm
Frame Galvanized steel,1.5mm thickness, 100mm*100mm
Angle: 45°
Accessories Fasteners: stainless steel screws
Feeder tank: 5L, galvanized steel
1500 kw electrical heater as back up
Sealing ring: silicone rubber
Warranty 5 years
