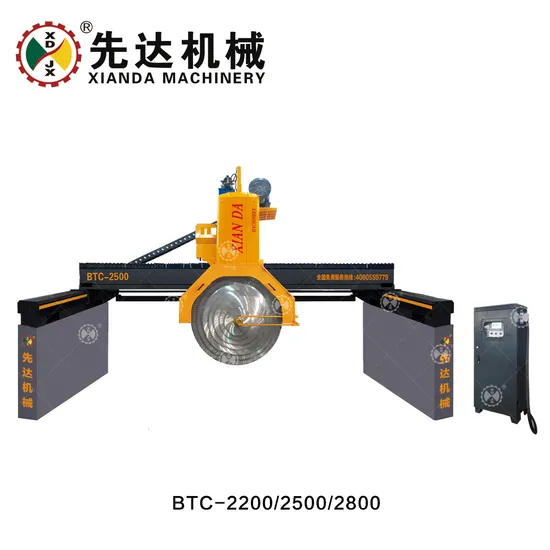

Xianda Btc-2200 Granite Marble Block Cutter Single Column Auto Stone Cutting Machine

Product Description

Multi-blade large stone block cutting machine marble granite block cutter
BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.

Parameter

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	2200	2500	2800
Max processing length	mm	3600	3300	3200
Max processing width	mm	2200	2200	2800
Max lifting stroke	mm	1350	1350	1350
Water consumption	m3/h	15	15	15
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Gross weight	kg	14000	14500	15000
