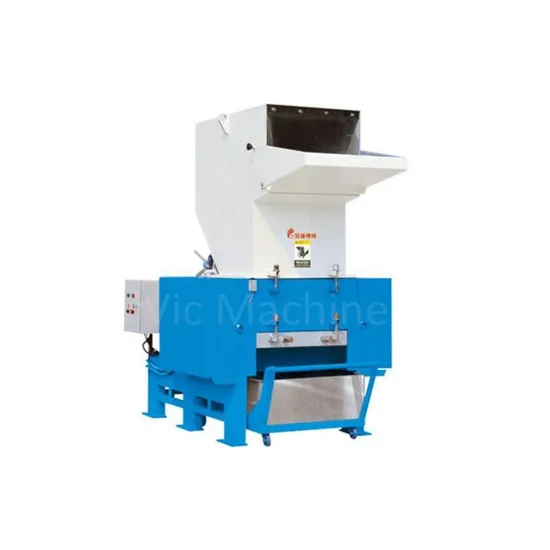

Noiseless Plastic Grinder PC 800

Product Description

Noiseless Plastic Grinder PC 800
Introduction:
1. The machine is made by high strength carbon steel, shocking resistance.
2. Any plastic(greater hardness of common plastic and engineering plastic), hiag and low dense plastic,
Films ands oft material, plastic bag can be crushed quickly. One motor, much function. A fully functional powerful crusher.
3. The large chunk of plastic can be crushed instead of cutting into pieces, no card.
4. The large mill using water cooling body, increasing the service life and avoiding the hardness of crushing blade.Reducing because of overheating.
5. Dismantle and pack simply, pure material easily, and add the safe switch.
6. Screen blade use advanced tool steel SKH9, SKD-11 and 9SiCr.
7. The front and back of the crushing room is double-layer-sound-isolution, its middle is filled with sound-deadening materials
8. This machine suits for all kinds of plastic, tires, medicinal materials, timber, tea and rubber.
9. Complete models, suitable for various plants, can be designed and made according to clients´ Requirements.
Main date:

Model	180	250	300	400	500	600	800	1000
Capacity(KG/H)	50--100	150--200	200--300	250--450	400--700	450--800	650---1300	750--1500
Power(kw)	1.5/2.2	4	5.5	7.5	11	15	30	37
Blade number	6+2	9+2	9+2	12+2	15+2	18+4	24+4	26+4
Mesh size(mm)	6	8	8	10	10	10	12	12
Import sizemm(mm)	110*180	250*160	320*200	420*220	520*260	600*240	800*500	1000*610
Boundary dimension (mm)	630*520 *950	900*700 *1050	1000*750 *1180	1060*880*1320	1150*1000 *1450	1200*1060 *1650	1850*1410 *2130	1950*1580 *2500
Weight(kg)	120	230	330	430	550	620	1700	2800

More picture:
Different models and dimensions
Strong case for easy opening
Durable alloy steel knife
Precision assembled tool shaft
Mesh size can be selected
Connection bolt handle for easy operation
Final production:
Package:
Our factory:
