Factory Price Fast Connector FTTH Field Quick Assembly 52mm connector Rapido Sc5203 APC Fast Connector

Product Description

Factory Price Fast Connector FTTH Field Quick Assembly 52mm Conector Rapido SC5203 APC Fast Connector

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry


Features : 1.ITU-T and IEC and China standards: 2.YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector Part 1: Mechanical Type single-mode optical connectors and jumpers 5.YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General Requirements Fiber Optic Cable Connector Part 4: Sectional Specification Optical Fiber Optical Cable Mechanical Connector

Specification:

Model No.	UT-SC5203
Connector Type	UPC/APC
Length	50mm
Applicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	About 50s(no fiber cut)
Insertion Loss	≤0.2dB
Insertion Loss Typical value	0.2dB
Return Loss	≥50dB UPC ≥55dB APC
Fastening strength of naked fiber	≥5N
Tensile strength	≥50N
Reusable	≥10 times
Operating Temperature	-40~+85ºC

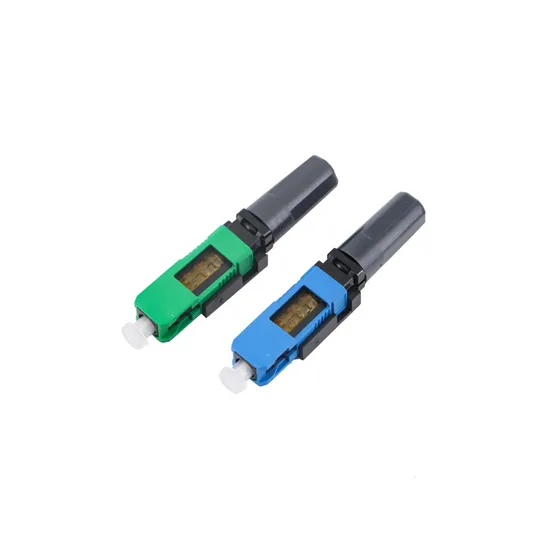

Details of Picture:




About Us:

Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.
Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What's more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.
All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
