Factory Direct High Performance PTFE Billets

Product Description

Product Description PTFE material resists attack by heat and virtually all chemicals. It is insoluble in all organics with the exception of a few exotic strong base chemicals. Its electrical properties are excellent. Although it has high impact strength, its resistance to wear, tensile strength and creep resistance are low in comparison to other engineering type thermoplastics. Mechanical properties can be improved by adding fillers such as glass fibers, bronze, Delrin, carbon, and graphite.
Main Properties & Application • Excellent corrosion resistance
• Good electrical insulation performance
• High temperature resistance
• Low coefficient of friction
• Good non-sticky properties
PTFE semi-finished rod,tube and sheet is widely used in chemical anti-corrosion,mechanical seal,engineering piping,electrical insulation,pump&valve fluid,aviation,textile,ceramic and other industries.

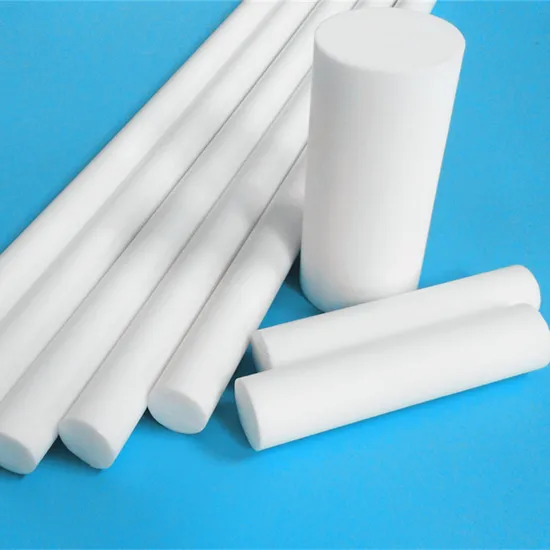

Product Range Standard semi-finished stock PTFE billits includes:
• Molded,extruded and skived sheets
• Extruded rods and tubes
• Molded rods and tubes
Materials
• Virgin,Modified PTFE
• Filled PTFE/Reinforced PTFE
Technical Data of PTFE billits:

Property	Norm	Value
Density(g/cm³)	ISO1183	1.8~2.5
Tensile Strength at Break(Mpa)	ISO527	18~30
Modulus of Elasticity(Gpa)	ISO527	0.35~0.5
Elongation at break(%)	ISO527	150~350
Hardness Shore(Shore D)	Durometer	50~65
Temperature Range(°C)	/	-196~260
Coefficient of Linear Thermal Expansion(10-4/°C)	ISO11359	1.0

Production ability:
Application:
Why choose us • Full traceability on all material under ISO 9001:2015
• Reliable and brand raw material
• In-house tensile strength and elongation testing
• Hot size on stock and quick lead time
• With over 20 years of manufacture experience of fluoropolymers
