Laser Gas Analyzer, in Situ Gas Monitoring,

Product Description

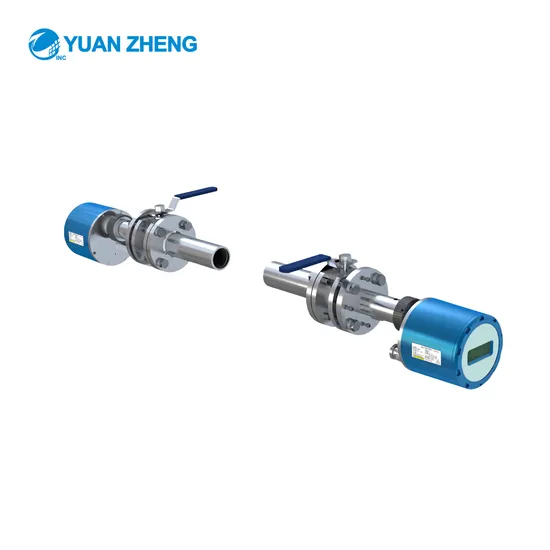

LGA-100 in-situ gas analyzer
LGA-100 in situ gas analyzer is a flameproof in-situ probe-type tunable laser gas analyzer for industrial online analysis and environmental on-line monitoring, which can online analyze O2, CO, NH3, CO2, CH4, H2O, HCl, HF and other gases in various complex conditions.
The main functional module is composed of a transmitting unit, a receiving unit and a junction box. The transmitting unit mainly drives the semiconductor laser to emit laser, and emits a specific wavelength laser through the environment under test. The receiving unit performs photoelectric conversion, signal processing and spectral data analysis, so as to obtain the measurement results. The junction box contains I/O interfaces, which facilitate the access and connection of power cables and signal cables.
Features:
• Easy optical path adjusting, XY direction non-coupling adjusting.
• Small drift, long maintenance period, drift ≤ 1%F.S./half year.
• Uses "Single line" spectrum technology, free from the interference of background gas.
• Integrated structure design, high stability, and reliability.
• Integrated flameproof structure, consuming less purge gas compared with positive-pressure mode.
• In-situ measurement without a pretreatment system which avoids adsorption, blockage, and damage reduces cost.
Application:
• Converter gas recovery gas analysis
• CDQ circulating gas analysis;
• oxygen measuring electric fishing coke oven gas after analysis;
• pulverized coal injection gas analysis;
• ammonia escaping gas analysis in the cement industry;
• trace CO detection and analysis electricity, cement, environmental protection;
• HCl and HF trace analysis in environmental protection and chemical industry.
Specification:

Principle	TDLAS
Linearity Error	≤±1%F.S.
Span Drift	≤±1% F.S./half year
Zero Drift	≤±1% F.S./half year
Calibration cycle	2 times/year
Response Time	≤1s(T90)
Explosion proof	ExdIICT6 Gb
Analog Output	2× 4-20mA output
Analog Input	2× 4-20mA input
Digital Communications	RS485/RS232/GPRS
Working Temp	-20ºC~+60ºC
Purge Gas	0.3MPa ~ 0.8MPa N2, clean air
Power supply	24VDC, <20W
Certificates	ATEX, IECEx, CE

Installation:
