Pallet Roll-in Low Profile Lift Table

Product Description

Product Description

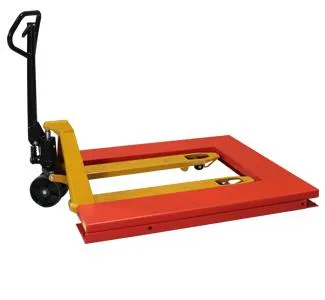

The Roll-In Level Loader from Southworth features a unique low-profile design that allows it to be fed with an ordinary hand pallet truck.
Simply pick up a palletized load, raise the pallet truck and roll the load into position. The pallet moves over the Roll-In while the pallet truck rolls between the outside platform and the center support beam. By eliminating the need for forklift trucks, costs are reduced and productivity is improved. A convenient footswitch allows for hands-free positioning of the load. A full perimeter toe-guard provides an added measure of safety.
Southworth designed to improve worker productivity while reducing the potential for worker injuries Whether you're lifting and positioning work, handling pallets, working with parts in containers or transporting loads, Southworth has a product range on lift table, pallet positioner, pallet lifter, container tilter, portable lift table or stacker to make the job FASTER, SAFER and EASIER.

Product Parameters

Model No.	MLU-010080-D2	Capacity kg	1000
Platform size mm	1350X1050	Lift Time sec	20
Min. Height mm	80	Max. Height mm	880
Model Type	stationary	Application	material handling
Color	Grey/green/ blue/others	Customized	Yes
Power Voltage	380V 50Hz	Control Voltage	24V DC

Application Fields
•Consumer Appliance Manufacturing •Printing, Publishing and Book Binding •Prepared and Frozen Food Processing
•Beverage •Pharmaceuticals •Automotive Parts
•Warehousing •Electronics Assembly •Woodworking
•Machine Shops •Retail Distribution
