Popping Boba/Explosive Pearls/Crispy Waves/Crystal Balls/Milk Tea Pearl Production Equipment

Product Description

Product Description

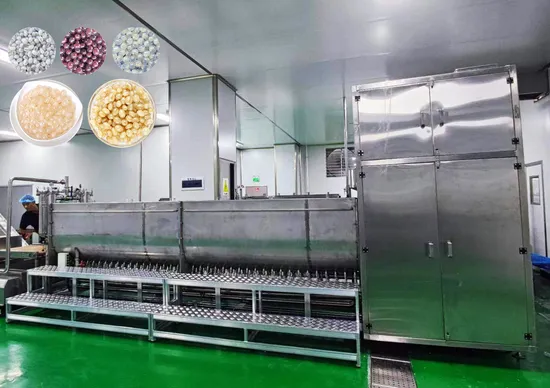

The popping bead/popping boba/crispy wave/crystal ball/milk tea pearl production line was developed by Changzhou Jinma Packaging Co., Ltd. This equipment is the main forming equipment for the popping beads of milk tea drinks. The materials coming in from the preforming equipment are continuously processed in this equipment. The reaction eventually forms the finished pop-up beads.

Equipment components:
Feed port, U-shaped boiling tank, material screw conveyor, discharge port, multi-head gas boiling system, colloid replenishment system. The fully automatic bead blasting production line is reasonably designed and easy to operate. The entire production line is made of 304 stainless steel, and the produced popping beads have a beautiful and round shape with less waste. Poppa beads can be placed in hot and cold drinks such as milk tea, ice cream, and yogurt, and can also be used as cake decorations, fruit salads, etc. The production line includes boiling and forming equipment. This pop-up bead forming machine can be used for the continuous molding of cereal-based pop-up beads such as water chestnuts, red beans, oats, highland barley, coix seed, black rice, coconut meat, etc. It has the characteristics of small footprint, compact structure, high production efficiency, and easy cleaning. The machine is made of stainless steel and uses brand-name PLC electrical components for control to ensure stable and reliable operation.
The main ingredients and features of Blast Beads:
The popping beads have a smooth taste. Use the tip of your tongue or teeth to squeeze the popping beads, and the juice will spray out instantly, giving you a strong taste impact. Three liquids are needed to make explosive beads
1. Juice liquid.
2. Sodium alginate liquid, which is composed of sodium alginate and water. Used to wrap juice liquids.
3. Protective liquid, this liquid is mainly used to preserve the prepared popping beads.
Shape: spherical, ellipsoid
Weight: 0.8g~1.2g/tablet
Usage: Suitable for normal temperature, low temperature, and cold drinks; can be used for milk tea, fruit drinks, milk drinks, cake decoration, egg tart filling, ice porridge, etc.
Detailed Photos

Product Parameters

U-shaped forming tank effective capacity	900L
Feeding port height	1400mm
Molding time	5-15 minutes continuously adjustable
Bead blasting processing capacity	maximum 800 kg/hour
Power supply:	380V, 50Hz
Power	12.5kW
Air source pressure	0.6~0.8 MPa
Circulation pump power	2.2KW, flow: 20t/h, head: 18M
Dimensions	ength 4000*width 1000*height 1650mm

Company Profile
ChangeZhou Jinma is an equipment manufacturer: focusing on the development and sales of automated production and packaging equipment for innovative ingredients (Hantian crystal balls, sandwich popping beads, etc.) in the beverage industry.
Jinma provides overall solutions: providing customers with customized overall solutions including workshop layout design, formula, process, equipment installation and commissioning and training.
Jinma is a high-tech enterprise: established in 2014, and was rated as a high-tech enterprise in 2019 and 2022.
Patented Technology Certificate
After Sales Service
Technical Support
1. Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service.

FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
1)Your expected capacity for machine.
So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Packaging and shipping
Wooden box---solid wood or multi-layer wood
