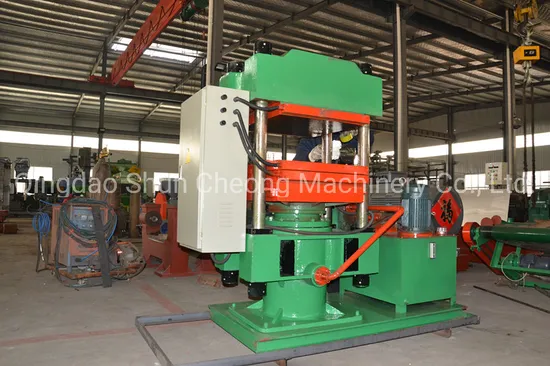

Rubber Forming Machine, Rubber Hydraulic Curing Press

Product Description

Rubber Forming Machine, Rubber Hydraulic Curing Press
Brief self-introduction:
Our factory has nearly 20 years' experience in manufacturing rubber machine.
We have a set of standardized production line, which contains wire peeling machine, rubber cutter,
Grinding mill, shredder, screen conveyor, rubber crusher, shaker, banburying mixer, open mill, spiral elevator,
Kneader, rubber filter and extruder, vulcanizer, refiner, calendering machine.
Specification:
1. We can provide our customers with various of plate vulcanizing press
2. Column type and Frame type
3. The capacity of our products can range from 25-5000T
4. We have the certificate of SGS/CE/BV/ISO9001: 2008
Features:
1. Our hydraulic press have passed ISO 9001 certificate, the quality can be assured.
2. Hydraulic Presses are the machines in which rubber compound and other materials are shaped as finished products. As are the machines, so are the finished products. Rangingfrom 50 to 2500 Tons, theses Presses are manufactured with operation safety and optimum machine production in mind.
3. Controls and hydraulic system are perfectly matched to ensure complete customer satisfaction
4. The frame is fabricated from tested-quality steel profiles and plates of suitable thickness to withstand load during operation. Maximum frame rigidity is achieved through computer aided frame design for
Longer life of press. Precise machining of parts and their careful assembly ensures accuracies like parallelism between platen & bed and right angularity between the bed and the moving platen.
5. The low noise powerful hydraulic unit is designed as per latest standards and assembled with best quality components. All valves are manifold mounted for easy and quick maintenance. A pressure relief valve protects against overloading of the press. During curing period, the motor stops which reduces
Electricity consumption. These presses provide fast approach, slow pressing and fast return speeds.
6. The change in speed can be manually preset with the help of limit switches. These presses give more production because numbers of breathing, breathing duration, curing time, temperature of platens etc can be controlled
Parameter:
We can design and manufacture according to your specific requirements

Model	Total Pressure	Daylight (mm)	Working Layer	Piston Stroke(mm)	Main Motor Power(KW)	Overall Diameter (LxWxH)(mm)
XLB-350x350x2	0.25	125	2	250	2.2	1200x580x1200
XLB-400x400x2	0.50	125	2	250	2.2	1400x500x1400
XLB-600x600x2	1.00	125	2	250	2.2	1880x820x1680
XLB-750x850x4	1.60	125	4	500	3	1730x930x2460
XLB-900x900x2	2.5	200	2	400	4	2345x960x1385
XLB-1200x1200x1	3.15	300	1	300	4	2800x1300x2300
XLB-1300x2000x1	5.60	400	1	400	8	2000x1860x2500
XLB-1500x1500x1	8.00	800	1	800	16.5	2200x2200x4300
XLB-1500x2500x1	15.00	400	1	400	11	3000x2500x3300
XLB-2000x2000x1	20.00	400	1	400	11	3600x3000x3300

Packaging:

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, plywood packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in plywood case or Container.

FAQ:

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services:

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
Welcome your inquiry!
