5h Dro Metal Mill Machine Horizontal Vertical Turret Milling Machine

Product Description

5H Dro Metal Mill Machine Horizontal Vertical Turret Milling Machine

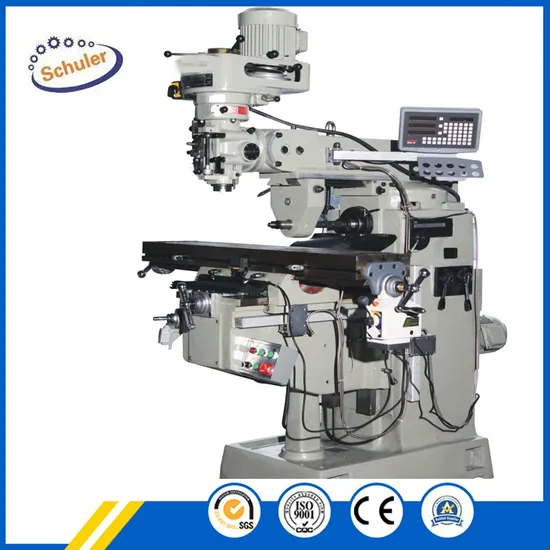

Product picture:
Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X-direction feeder
2.Y-direction feeder
3.Z-axis electric lift:
4.Digital display. for two groups and for three groups.
5.Aluminum alloy operation panel
6.Milling head protection
7.NT30 pindle NT40 spindle
Turret Milling Machine Technical Parameters:

Specifications		Unit	5H
Table size		mm	1370x305(54" x 12")
T- slot number and size		mm	3/16/65
Working table stroke	X	mm	850
	Y		400
	Z		450
Ram stroke		mm	500
spindle nose to table top		mm	0-460
Taper of spindle hole			NT40
Spindle speed(50HZ)		r/min	66-4540
Spindle travel		mm	127
Spindle sleeve diameter		mm	105
Spindle feed rate		mm/r	0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		HP	5
Head rotation (left - right )		°	90°
Head rotation (front - rear)		°	45°
Overall size(LxWxH)		mm	1750x1650x2150
Gross Weight		Kg	1700

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Turret Milling Machine Details:
Turret Milling Machine In the Workshop:
Turret Milling Machine Package delivery:
