High Quality PVC Lining Fire Fighting Canvas Irrigation Hose (UL/EN14540/CNBOP/MED) for Fire Equipment System

Product Description

Product Description
PVC Lining Fire Fighting Canvas Irrigation HoseJacket: 100% filament polyester are combined with filament polyester,single jacket,twill weaving
Lining: PVC:creates an extremely smooth waterway surface, thereby significantly reducing friction loss and improving flow characteristics.The vulcanized adhesion system creates both a mechanical and chemical bond between the PVC lining and the inner jacket, eliminating the possibility of delamination as is experienced with competitive adhesive bonded rubber constructions.Feature:
1. Very lightweight and highly flexible
2. Good adhesion
3. Easy maintainence and handling
4. Color coating can improve abrasion resistance
Standard: EN14540, MED, CNBOP, SII, KKIThe hose is made and assembled in the China, available with either imported or domestic couplings in aluminum or brass.

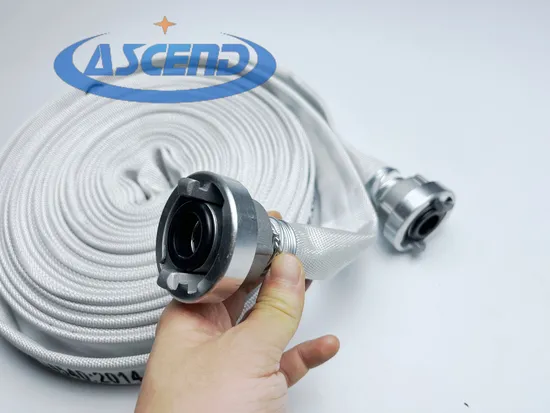

Detailed Photos
Product Parameters

Item	Size	Inner Diameter (ID)	Working Pressure	Burst Pressure
	inch	mm	Mpa	Mpa
HS-PVC	1 1/2	38	1.3	4
	1 3/4	45	1.3	4
	2	50	1.3	4
	2 1/2	65	1.3	4
	2 3/4	70	1.3	4
Note: Hose Size,length, colour and surface options available upon request

Structure
