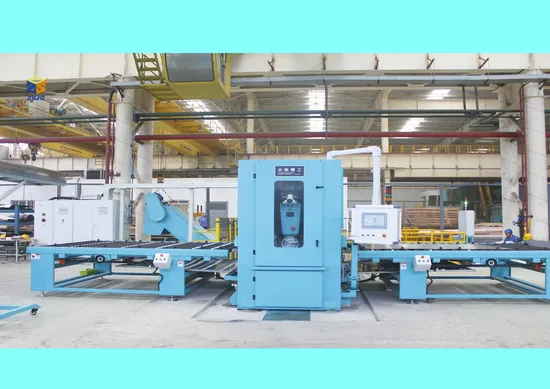

Grinding and Polishing for Hot-Rolled Plates Machine

Product Description

Full Automatic Grinding and Polishing Line is applied mainly for the removal of defects from hot rolling, pickling & annealing process and residual scale, and achieve the requested thickness and roughness. The coolant could be emulsion or mineral. Coolant filtration and recycling system is essential to the complete line. ZS CPL is designed for processing of hot rolling heavy plate from 100 to 2200 mm width and a thickness between 3.0 to 50 mm.

Processing materials	SS, Ti, Ni, Zr, Mo
Material type	Sheet
Working width	1000-2600 mm
Working capacity	1000 - 12000 mm
Machine opening capacity	3.0-50 mm
Feeding speed,stageless adjustment	2-8 m/min

- Perfectly built Recycling System, No environment Pollution
- Automatic belt tracking and hydraulic/pneumatic belt tensioning ensure Optimum
Consistency and minimized operational costs.
- Pre-programmable execution settings for part thickness, abrasive belt head Depth and
brush head depth
- Automatic Thickness Adjustment, with Digital Read-Out
- Strong Machine Frame, Vibration is well absorbed
- Large Contact Roller with Perfect Static as well as Dynamic Balance, High Spinning And
Long life of Abrasive belts is ensured
- Higher Efficiency
- Fast Change of Abrasive Belts
- Best Cost Performance
- Wide Belts, For Maximum 2200 MM Plates.
- Forward and Backward Transmission

Typical Applications of NO.4 & HL include: Elevator, Escalator, interior cladding, building facades, Home Appliance, Etc.
Further treatment is always done upon No.4 and HL surface: PVD Color, Etched Pattern, Anti-Finger Print Processing, To name a few, are the most common one.
It is suitable for the calibration grinding for SS, Ti, Ni, Zr, Mo. plate.
