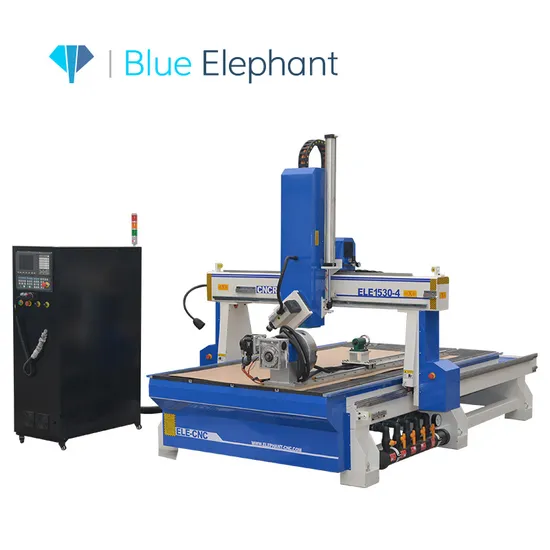

Best 4 Axis CNC Router 1530 Atc Woodworking Machine Linear Type for Wood Acrylic Engaving for Furniture in UK

Product Description

Best 4 Axis Wood CNC Router 1530 ATC Woodworking Machine Linear Type For Wood Acrylic Engaving
Advantages:
Welded structure by thick profiled steel,Assembled with precise parts. Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place. Imported SYNTEC high performance control system, separated keyboard control, color LCD display. Furniture: wooden doors, cabinets, computer tables, sewing machine, musical instruments Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting.
Parameters:

Description	Parameter
X,Y,Z Working Area	1500x3000x400mm*±100°
Table Size	1500*3500mm
Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
Frame	Big Steel Tube Structure
X, Y Structure	Helical rack gear, Taiwan HIWIN Linear guide
Z Structure	Imported Taiwan TBI Ball Screw ,Taiwan HIWIN Linear Guide
Max. Rapid Travel Rate	40000mm/min
Max. Working Speed	30000mm/min
Spindle Power	Italy HSD Spindle 4.5kw( Italy ATC spindle for option)
Spindle Speed	0-18000RPM
Drive Motors	Japan 850 W YASKAWA Servo Motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	Taiwan SYNTEC Control System (model: EZ4M)
Computer Interface	USB
Flash Memory	512M
Collet	ER25
X,Y Resolution	<0.01mm
Software Compatibility	UG , Power mill

Main Parts
Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7?days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7?days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
