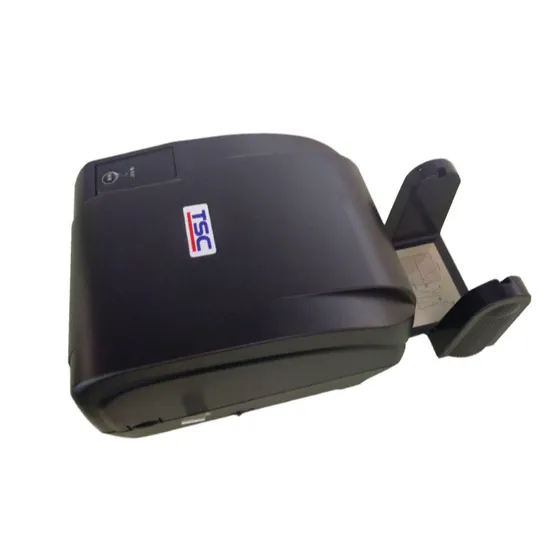

Barcode Printing WiFi Bluetooth Te310 Thermal Ribbon Transfer Label Printer
| US$320.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TE310
Automatic Two-sided Printing
Single Side
Supply Paper Mode
Automatic Feeding
Interface Type
USB
Network Function
No
Style
Black and White
Consumable Type
Printer Ribbon
Max. Paper Size
4 Inches
Character Structure
Printer
Model
Te310 210
Definition
203dpi, 300dpi
Speed
Max 5 Inches
Material
Plastic
Transport Package
Carton Outside
Specification
45*31*31
Trademark
NO
Origin
China
HS Code
8443321900
Production Capacity
1000PCS
Product Description
Barcode Printing WiFi Bluetooth Te310 Thermal Ribbon transfer Label PrinterFeature of printer consumables/ printer ribbon:
* Wash resin ribbon excellent with high washability and superior resistance to dry cleaning, sweat heat and water.
* High resolution suitable for printing standard and rotation barcode.
* Satisfy printing demands for different care label material, nylon taffeta, satin fabric.
* High sensitivity to ensure the great printing results.
*Anti-static back coating technics for print-head protection. 1. The model with 300dpi, suits for both thermal transfer printing/ thermal sensitive, with printing speed5 inches/ sec=127mm/sec,
the max printing width is 104mm.
2. High definition use for tiny words, text, icons, logo barcodes printing with clear images, one type high performance
application kind of competitive price.
3. Metal shell gurantee its long time working and suits for factory massive production.
4. USB and Ethernet interface
5. Support for 1-Dimension and 2-Dimension barcodes print.
6. Ribbon width 25.4mm -114mm
| T 21 Series - Desktop thermal transfer printer / barcode printer | |||
| Model | T21 | T31 | |
| Printing resolution | 8 dots/mm (203dpi) | 12 dots/mm ( 300dpi) | |
| Printer mode: | Thermal transfer printing/ direct thermal sensitive | ||
| The max printing speed | 152.4mm (6" ) / mm | 127MM (5 ")/MM | |
| The max printing width | 108MM (4.25" ) | 105.7MM (4.16") | |
| The Max printing length | 25.400MM (1,000") | 11,430MM (450") | |
| Printer body shell | ABS plastic | ||
| Dimension | 204MM (W) x 164MM(H) x 280 mm (L) 8.03"(W) x 6.46"(H) x 11.02"(L) | ||
| Weight | 2.5 kg (5.51 pound) | ||
| Inside roll diameter | 127MM (5 " ) outside diameter | ||
| ribbon | 300M , the max 67 mm diameter, 1 inch core roller ( outside inking) 110M, the max 40mm diameter, 0.5 inch core (outside inking) | ||
| Ribbon width | 40mm - 110mm ( 1.6 " -4.3") | ||
| CPU | 32 bytes high efficiency CPU | ||
| Memory | • 128 MB Flash memory • 64 MB SDRAM | ||
| Sensor | • Paper distance sensor (penetration) • Black mark sensor (reflective , adjustable) • Ribbon end sensor • Printing head up sensor | ||
| Communications interface | • USB 2.0 • Serial port (RS-232) • Built-in Ethernet server • USB Host , support stand-alone and barcode scanner • Parallel) (EX-Factory alternative) • Bluetooth (customer options) | ||
| Power supply | Circumscribed Voltage automatically switch power supply • AC Imput :AC 100-240V, 2.5A, 50-60Hz • DC ouput :DC 24V, 3.75A, 60W | ||
| Operation switch, button, LED/ LCD | • Power supply • One operation button (Pause,Feed) • LED light (3 colors: green ,orange, red) | ||
| Date / time generator | EX-FACTORY alternative | standard configuration | |
| In-built typeface | • Eight kind bitmap typeface • One set Monotype® CG Triumvirate Bold Condensed Vector Fonts and True Type Font typeface generator | ||
| Barcode | • 1-Dimension codes Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS • 2-D codes GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 | ||
| Tyepface and codes rotary | 0°,90°,180°,270° | ||
| Instruction sets | TSPL-EZ TM (compatible with EPL,ZPL,ZPL II) | ||
| Label substrates type | Continous label, distance paper, black mark paper, hang tags, fold label etc | ||
| Paper width | 20 ~ 112 MM(0.8" ~ 4.4") | ||
| Paper thickness | 0.06 ~ 0.19MM (2.36 ~ 7.48MIL) | ||
| Paper core ( size) | 25.4 ~ 38.1 MM(1" ~ 1.5") | ||
| Label length | 5 ~ 25,400 MM (0.2"~ 1,000") | 5 ~ 11,430 MM (0.2" ~ 450") | |
| Environment condition | Operation:5 ~ 40°C,Humidity(uncondensed) 25 ~ 85% Storage :-40 ~ 60°C,humidity(uncondensed) 10 ~ 90% | ||
| Certificate | FCC Class B, CE Class B, C-Tick Class B, UL, cUL TÜV/safety, CCC, EAC, CoC, BIS, KC, Energy Star Safety regulations | ||
| Environment regulations | conform to RoHS,WEEE | ||
| Spare parts | • Windows roll label editor software,Dirver programe and opertion manual handbook CD • quick-installation guide • USB trasmission line • Power supply line • Circumscribed Voltage automatically exchange power supply 1 inch paper core , paper fixation panel*2 transverter *2 1 inch ribbon paper core and rewinding roller | ||
| Factory alternative | inscribed bluetooth 4.0 ( alternative) | ||
| Distributor alternatives | • Label sticker peeling off module • Knife -cutting ( full width cutting) | ||
| Customers alternative: | • external hanger (max diameter 8.4" in 3 inches core) • 802.11 b/g/n wireless network module ( serial port) • Stand-alone keyboard(KP-200 PLUS,KU-007 PLUS) | ||
