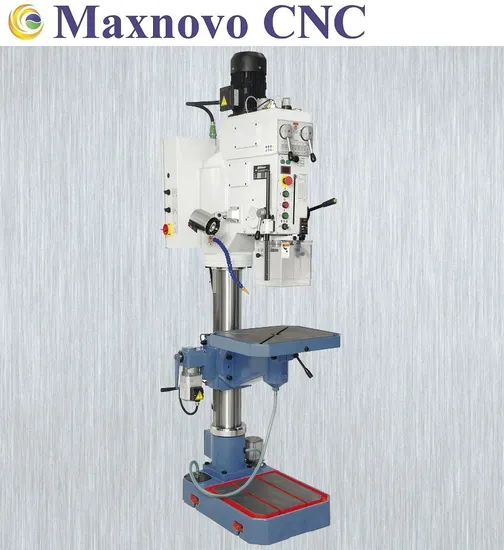

Ssb50xn Variable Speed Column Type 50mm Vertical Drilling Machine

Product Description

MM-SSB50Xn / Vertical Drilling Machine / Column Drilling Machine / Gear-head Drilling Machine / Bench Drilling Machine / Column Drill Press / Box-Column Drill Press / Drilling Machine
This kind of MM-SSB50Xn is high precision Column Type Variable Speed Vertical Drilling Machine has Max. Drilling Capacity 50mm which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such solid gear-head universal drilling machine is suitable for a large variety of applications such as drilling, tapping, countersinking etc and it is most commonly used in repair shops, industry schools and factory. Quality at a cost-efficient price and this vertical drilling machine is for demanding users.
Product Description

Variable Speed Universal Heavy Duty Column Type Industrial Powerful Vertical Drilling Machine with Coolant System For Workshop Applications. It is Ideal for single part and series productions, for drilling, countersinking, reaming and tapping. Max. Drilling Capacity Diameter is up to 50mm.

--Heavy Duty 750 KGS ---------Smooth Running
--Mechanical Reliability------------Easy to Run
--Industry Use True Capacity---Size and Ergonomics
--Long life Lasting Value----------Full equipment
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
--Max. drilling capacity is 50 mm diameter
--Automatic drill feeds controlled by an electromagnetic clutch
--Heavy cast-iron construction with thick-walled column
--Tapping feature
--Including coolant system and work lamp
--Grey cast-iron Table rotates and swivels from -45 degree to +45 degree
--T-slots in base allow mounting of over-sized work-piece
--Electromagechanic feed
--Gear shift located on front of machine allows quick speed change
--Adjustable drill depth stop includes scale for easy readout
--Solid grey cast iron table with tilt and rotatable support
--Protective cover with limit switch for increase security
--Excellent illumination at working by LED Machine Light
--Automatic toothed wheel lubrication via oil pump
--Powerful drive motor designed for longer use
--Automatic spindle feeds via electromagnetic clutch
--Very smooth running due to ground oil-quenched gear wheels
--Digital display for speed and drill depth is optional
--High true running accuracy due to hardened and ground main spindle
--Certificate of Original ( CO, FORM A, FORM E, FORM F )
Product Parameters

Technical Data :

Product Name:	Heavy Duty 50mm Vertical Drilling Machine
Product Item:	MM-SSB 50 Xn
Max. Drilling Capacity (in steel) :	Ø 50 mm
Max. Tapping Capacity (in steel) :	M27
Working Area
Table Set Up Area :	580 X 460 mm
Quill Stroke :	200 mm
Table Stroke :	530 mm
Table Swivel Range :	± 45°
Spindle nose-to-table Distance :	590 mm
Spindle nose-to-foot Distance :	1175 mm
Throat :	380 mm
Column Diameter :	Ø 180 mm
Headstock
Spindle Speed :	70-2100 RPM
Spindle Speed Steps :	9 steps
Spindle Taper :	MT4
Feed
Quill Feeds :	0.12, 0.23, 0.4 mm / Rev
Drive Capacity
Main Motor :	2200W
Connect Voltage :	Three Phase 400V Voltage
Dimensions and Weights
Product Size :	970 x 680 x 2405 mm
Packing Size :	1170 X 720 X 2250 mm
Gross Weight :	750 KGS
Standard Accessory :	Electromechanic Automatic Spindle Feed, Coolant System, Machine Lamp, Key type Drill Chuck Wedge for taper shank tool Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you. High Precision Vertical Drilling Machine for Demanding Users !
FAQ :
1. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM to meet clients' requirements.
2. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


3. Question : What is the average delivery time ?
Answer : Most of time, it would be within 1 -- 2 month since after confirm receiving customers' contract money.
