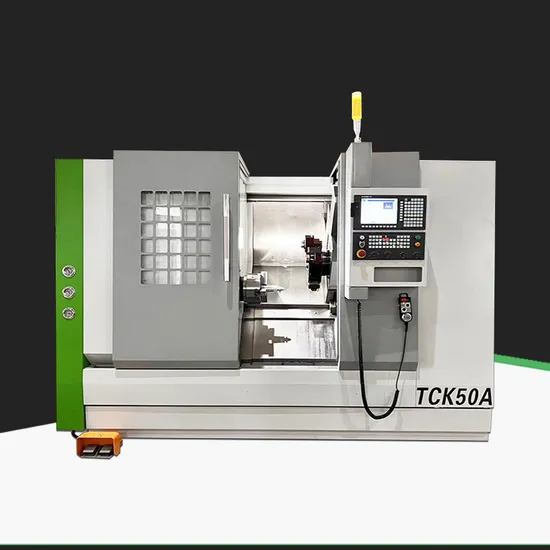

High Precision CNC Lathe Tck50A CNC Slant Bed Metal CNC Lathe
Basic Info.
Model NO.
Tck50A Cnc Slant Bed Metal Cnc Lathe
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max. Length of Workpiece (mm)
350
Spindle Bore(mm)
66
Spindle Motor Power(Kw)
7.5
Number of Axes
3
Travel (X Axis)(mm)
240
Travel (Z Axis)(mm)
400
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2500*1700*1890
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
High Precision Cnc Lathe Tck50A Cnc Slant Bed Metal Cnc Lathe
Main performance characteristics:
The main performance characteristics:
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Optional Accessories: Main Motor: Servo5.5/7.5KW , Inverter 7.5KW Turret: 4 station electric turret ,6 station electric turret Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) Chip conveyor Steady Rest Other optional item: Driving tool turret, automatic feeding device and manipulator.
| Model | TCK 50A (GSK 980TC3 system) |
| Standard accessories | Unit ( mm ) |
| Maximum turning diameter of bed | Φ560 |
| Maximum turning diameter of cross slide | Φ260 |
| Maximum processing length | 350 |
| Maximum machining diameter (disk type) | Φ400 |
| Standard chuck specifications | 10 inch Bedford/Taiwan |
| Hydraulic knife tower | 8 station(Optional)12 |
| X axis maximum stroke | 240 |
| Z axis maximum stroke | 400 |
| Spindle speed | 3000rpm |
| Spindle speed stage | stepless |
| Spindle end code | A2-6 |
| Spindle through hole | Φ66 |
| Pull tube through hole | Φ55 |
| Maximum diameter of boring tool | Φ40 |
| Cutting feed rate | 1-15000mm/min |
| X/Z motor torque | 7.5/7.5/NM(X direction with brake) |
| X/Z axis rapid movement rate | 18/18m/min |
| Tool body size of turning tool | 25*25 |
| Spindle motor power | 7.5KW |
| Turret center high dimensions | 100 |
| Sleeve diameter | 70 |
| Sleeve stroke | 80 |
| Spindle unit | Φ200 |
| Screw bearing | 35/35/PMI/HIWIN/Taiwan |
| X/Z Ball Screw | 7206B/DB/P5/PMI/HIWIN/NSK |
| The X/Z axis screw specifications | 3210/4010 |
| Taper hole of tailstock sleeve | MT5# |
| Maximum stroke of tailstock | 200 |
| Dimensions (length × width × height) | 2500*1700*1890 |
| Total Weight | 2800KG |
| Main accuracy index of machine tool | |
| Test items | Standard tolerance(mm) |
| Periodic axial movement of the spindle | 0.005 |
| Radial runout of the positioning cone of the | 0.005 |
| Position | X:±0.003 Z:±0.003 |
| Repeat positioning accuracy A | X:±0.003 Z:±0.003 |
| Diameter consistency | 0.01/150 |
| Flatness | 0.02/φ200 |
| Thread pitch product error | 0.010/50 |
| Surface roughness | Ra1.6μm |
