150ml-2000ml Semi-Automaic Plastic Blow Machines

Product Description

Product Description
Description for semi-automatic blowing machine
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter.Semi-automatic blow moulding machine
Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.
High responsiveness pneumatic components,action timely and precisely
Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation
Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Technology advantage:
Special design,high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation,no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke,quick action
All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
Hig dead-weigh, ensure the steady during the opeartion Product Parameters
Technique Parameter of blow molding machine:

Main parameter:
Model	GMS-1600
Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	800PCS/H 500ml
Machine size and weight	Main machine (L x W x H)	170*67*186cm
	Main machine weight	600Kg
	Heater (L x W x H)	170*65*145cm
	Heater weight	250Kg
	Power	16kw

MAIN CONFIGURATION OF THE BLOWING MACHINE

No:	Name the part	brand
1	Mould 0/C cylinder Stretch cylinder	YONGCHENG
2	Low pressure valve reducer valve	STNC
3	Blow valve	QUANJIA
4	Power switch	DELIXI
5	Infrared lamp	CHINA
6	Heat module and meter	ZHENGYU

DETAILS FOR AUXILIARY MACHINERY of blowing line
HP air compressor:

Air compressor	Unit	1.2M3/30KG
Volume	M3	1.2
Pressure	Kg	30
Power	KW	15
Overall Dimension	mm	2000*1100*1600
Weight	kg	620

Air Cooling Drier:

Refrigeration Air Dryer	Unit	2.0M3/3.0Mpa
Flow capacity	Nm3/min	2.0
W.P	Mpa	3.0
Inlet Temp.	ºC	≤80
Dew point	ºC	23
Ambient Temp.	ºC	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium		R22
Overall Dimension	mm	1050×650×1100
Weight	Kg	120

Air Filter:

Refining-Filter	Unit	2.0M3/30Kg
Flow Capacity	M3/Min	2
Max. work pressure	Mpa	3.0
Inlet Temp.	ºC	≤50
Overall Dimension	mm	750*350*350
Weight	kg	20

Mold Chiller:

Model		3HP
Cooling capacity	Btu/h	28541
	KW	8.36
	Kcal/h	7188
	USRT	2.5
Compressor power	220V/50HZ	380/3PHASE/50HZ
Compressor power	KW	2.5
Refrigerant		R22
Water tank capacity	L	50
Flow water inlet and outlet pipe	M³/h	1.44
Pump power	HP	0.5
Exterior dimension	Length(mm)	1000
	Width(mm)	600
	Height(mm)	1180
Weight	Kg	150

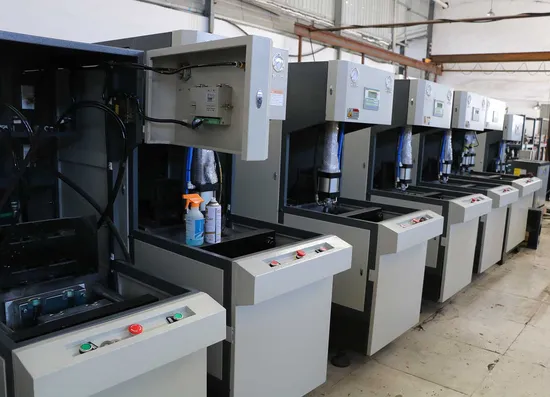

Detailed Photos
