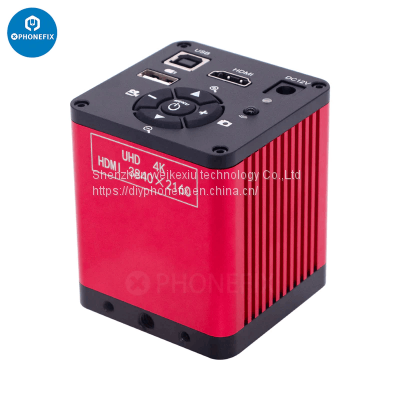

48MP 4K HDMI VGA USB 2.0 CS Mount Microscope Camera

Product Details

Product Description

Product Description
Description
48MP 4K 1080P 60fps 1/2" Video HDMI USB Output Digital Microscope Industrial Camera U Disk Computer Photo Video Storage CS Mount Industrial Camera For Monocular Stereo Trinocular Microscope Soldering Microscopy Digital Images Acquisition Industrial 4.0 Machine Vision Live Broadcast.
Specification:
48MP HDMI VGA USB Microscope Camera
High Quality, High Resolution, Clear Images
Effective Pixels: 48 million camera pixels
Video output interface:
Ultra-clear HDMI digital direct line monitor
USB 2.0 to computer
U disk photo video storage
HDMI output resolution:
4K 3840x2160 @ 30FPS frames 1080p @ 60FPS frames
USB Output:3840x2160@20FPS 1920*1080@30fps
4K videos @ 30FPS frames 1080p @ 60FPS frames
Mount: CS mount lens
DC 12V working voltage
Working current 200mA
Photosensitive size 1/2"
Pixel size 2um*2um
Picture Pixel: 48M
Resolution: True 4K
Frame rate: 4K mode@30FPS 1080p mode@60FPS
Scanning method: Progressive scan
Shutter type: Electronic shutter
Dynamic range: 78dB
Signal to noise ratio: 40dB
Menu language: Chinese/English optional
White Balance Mode: Primary White Balance/Manual/Auto
Adjustable to reduce reflections
Movable cross line supports 10 horizontal and vertical lines Color/line width position adjustable
Black and White: Supports black and white display of images
Negative image: negative effect
Mirror: Live, Horizontal, Vertical, Flip
Freeze: Screen/Unfreeze Support
Half screen contrast support
Image parameters: adjustable sharpness, contrast, saturation, custom settings
Dimensions: 72x63x63mm
Package includes:
1 x Microscope Camera
1 x Power Supply
1 x HDMI Line
1 x USB Line
