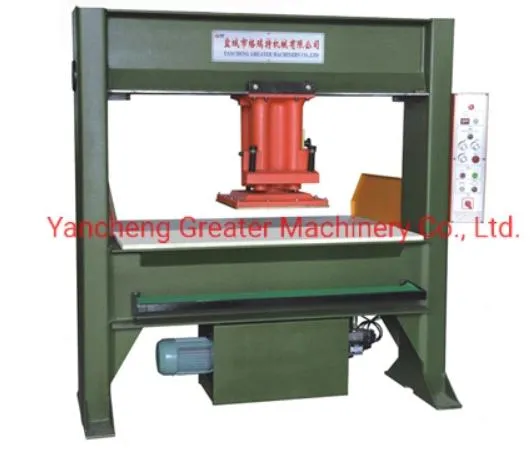

Traveling Head Hydraulic Die Cutting Press

Product Description

Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.

Main Technical specification
Model	GRT-T50
Maximum cutting force	50T
Working table	1600*550/1800*550/2000*550mm
Cutting head size	550*550mm
Adjustable stroke	5-150mm
Motor power	4.0KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine dimensions	2200*720*2000mm
G. W	3000kg

1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with
machine. If there is still have any question, we will provide free professinal guide for you until you
could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales
service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price send to you.
