CNC Heavy Cutting Type Gantry Milling Machine-Milling Machine in China Factories-Mold Base Two Surfaces -Double Column Plano Milling Machine-Japan Fanuc System

Product Description

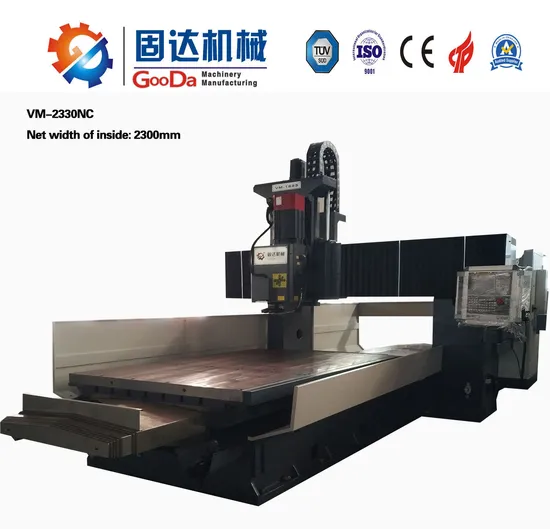

CNC Precision Vertical Milling Machine VM-2330NC -spindle driving by powerful Gear Box type
GOODA CNC planer millinh machine VM-2330NC is top 1 configuration surface machine. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Features and applications:
Automatically measure, automatically processing and excellent surface performance. Maintain high accuracy for dimension, squareness and parallelism. One loading and one setting needed only is helpful to shorten the preparation time. Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface. Machine bed base with chip removal groove.
Productivity Features

VM-2330NC Specifications
No.	Item	Description	Specification
1	Model	GOODA CNC vertical milling machine	VM-2330NC
2	Net width	Net width of inside	2300
3	Cutting capacity	Max. machining length mm	3000
		Max. machining width mm	2300
		Max. processing height mm	600
4	Worktable	Worktable size mm	3000*1800
		Max loading weight kg	16000
5	The milling head assembly	Spindle power kw	15/22/30/37
		Spindle taper	BT50(7:24)
		Speed of mainshaft C/S	50-500
6	Travelling speed	X axis moving speed mm/min	0-8000
		Y axis moving speed mm/min	0-8000
		Z axis moving speed mm/min	0-8000
7	Motor power	X,Y,Z axis motor kw	5.5,3,3
		Chip-removal motor kw	1/2
8	Dimension & weight	Machine height mm	3600
		Machine area mm	7100*4100
		Machine weight kg2	5000

Productivity configuration

Sort	Name	Quantity	Origin	Remark
Machinery	Worktable ball screw	3	Taiwan HIWIN	steady transmission, High accuracy, wear-proof
	guide rail	3	High frequency hardened rail of Quenching	Good bearing, Heavy cutting
	Main Spindle (Horizontal)	2	Taiwan POSA	Low noise, high strength, Taiwan famous brand
	Flexible stainless steel plate shield of worktable	2	Domestic	High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
	Base casting	1	HT150	Good stability, excellent wear-ability
	Automatic lubricating machine	3	Domestic	Electronic-self-lubrication, Quantitative oil supply to the each part
	Oil line	3	Domestic	Copper tube
	Bearing		Germany FAG	World famous brand, High accuracy, High quality
Electrical appliances	CNC system	1	Japan FANUC	Top brand of CNC
	Servo motor	3	Japan FANUC	Top brand of CNC
	High precision rotary table	1	Taiwan Central Star	Taiwan famous brand, High accuracy
	Spindle motor	2	CTB	Multitronic, Meet the requirements of different processing speed
	AC contactor		Taiwan TECO	Famous brand, steady property
	Relay		Japan OMRON

Product Description
The best choice of surface milling machine for 2300x3000mm square plates.
CNC Precision Vertical Milling Machine VM-2330NC
Spindle driving spindle driving by Gear box type/Belt type
Cutting capacity(W*L*H): 2300*3000*600mm
Cutter OD.: 250mm
Milling accuracy:Flat and parallel tolerance≤0.03mm/1000mm
Machine base with rigid, one piece iron construction.
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity benefits
GooDa CNC milling machines offer the following benefits:
1.has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors.
2. After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training. 5.Save you time and money and increase your productivity by high speed milling.
6. Maximize tool life assuring your production will pay dividends for many years.
Don't worry and trust us, we will all here serve you.
FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: How is the delivery?
A:For standard configuration, it's usually 45 days after down payment.
Q: Have you sold any machines in my country?
A: With the company development, Gooda plays an important role in the China machine industry and export our machine to all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: Can you support OEM Service?
A: Yes, according to customers' requirement, we would like to make the building plan to meet customers meet.
Q.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service. If there is any issue for the machine, please contact us immediately and we will give you solution way soon. Service first!
Thank you.
