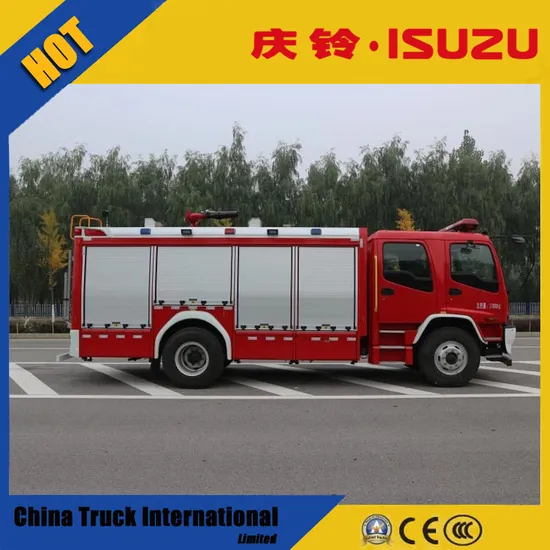

Fvr 4X2 Fire Engine Fire Fighting Rescue Truck

Product Description

FVR 4X2 Fire Engine Fire Fighting Rescue Truck
1.Product Description:

Dimension(L×W×H)	8350mm×2490mm×3300mm
Weight(Full Load)	17000kg
Engine Power	241hp
Power Density	10kW/t
Crew	1+1+4 person
Max Speed	100km/h
Pump Flow	60L/s(1.0MPa)
Tank Capacity	4000kg
Roof Turret Range	≥65m

Chassis

Model	FVR,QL1180XMFRY
Drive Type	4×2
Wheelbase	4500mm
Permissible Total Weight	18000kg
Engine	Engine model:6HK1-TCL
	Power:241HP( 177kw)
	Max Torque:981N.m/1450rpm
	Displacement:7.79L
	Emission:Euro5
	Fuel Type:Diesel
Transmission	MLD-6Q, 6 forward & 1 reverse
PTO	Full Power PTO
Tyre	11R20-16PR, 7PCS
Cab Structure	4 doors 2 row
Standard configuration	Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance Battery, Data Recorder

Pump

Model	Shanghai Xiongzhen CB10/60-XZ
Flow Rate	60L/s(1.0MPa)
Material	Cast aluminum alloy pump body, aluminum alloy impeller, stainless steel pump shaft
Primer Pump	Piston type
Max Vacuum	≥85kPa
Loading Time	≤60s
Loading Height	7m
Location	Real installed

Roof Turret

Model	Chengdu Weisite PSKD50W
Operation	Electric
Flow Rate	50L/s
Range	≥65m
Injection Mode	Direct current
Rotation	340°
Elevation	-10°~70°

Tank

Capacity	Water 4000kg
Material	Stainless steel 304
Sheet thickness	Base plate and front and rear sealing plates 4mm, side plate, top plate and diaphragm 3mm
Position	Between equipment box and pump room
Type	The water tank is designed whole exposed type
Structure	Vertical and horizontal partitions are set inside, and longitudinal joists are set at the bottom
Fix	Elastic support on both sides, installed on the subframe
Tank Accessories	500mm Water tank inlet hole with green tank cover
	1 DN125 overflow port of water tank
	1 Liquid level indicating sensor
	1 Drain outlet of water tank,DN50 Manual ball valve control
	1 DN150 Water tank outlet
	1 DN65 Water injection from pump to tank

Equipment box Pump Chamber

Position	Between cab and tank
Structure	Steel frame, aluminum alloy mask
Internal equipment rack	Aluminum alloy profile, aluminum alloy partition
Rolling shutter door	One left and one right, pull rod type, with lock
Interior lighting	LED white light band, open and close with rolling shutter door
Flip pedal	Under the roller shutter door, bearing 150kg, yellow flashing warning light

Position	Rear vehicle
Structure	Steel frame, aluminum alloy mask
Internal equipment rack	Aluminum alloy profile, aluminum alloy partition
Rolling shutter door	One left and one right, pull rod type, with lock
Interior lighting	LED white light band, open and close with rolling shutter door
Flip pedal	Under the roller shutter door, bearing 150kg, yellow flashing warning light
Back stairs	Foldable, aluminum alloy, on the right side of the rear of the vehicle

Pipeline System

Suction pipeline	One DN150 internal buckle type interface, equipped with filter screen and blind cover
Outlet pipeline	Low pressure pipeline: 4 DN80 manual ball valves, with interface and blind cover Medium pressure pipeline: 2 DN65 manual ball valves, with interface and blind cover
External water injection pipeline	Up turn type, 2 DN80 manual ball valves, with interface and blind cover
Turret outlet pipeline	One DN100 electric pneumatic butterfly valve
Tank filling line	One DN65 electric pneumatic butterfly valve
Other function settings	Automatic water reception

Control cabinet and instrument panel

Position	Pump room rear outside
Material	Cast aluminum alloy
Technology	The surface of control cabinet is treated by sandblasting and anodizing
Control cabinet accessories	lock up flap, instrument panel light, buzzer alarm
Control switch and key	Instrument lighting, water diversion, tank injection, tank outlet, turret outlet, automatic water receiving, hand throttle, emergency stop, etc.
Instrument display	Speed value, vacuum value, pressure value, water level value and liquid level value

Electrical system

Main power switch	installed
Alarm lamp	one LED red long row alarm light on the top of the cab; three red and blue LED strobe lights on the upper part of both sides of the vehicle
Alarm light alarm controller	Power 100W, with handheld loudspeaker in the cab
Electronic search lamp	70W, at the rear of the roof
Working light	Two upper parts on both sides of vehicle , LED lighting
Back Guide Monitor	7-inch color LCD in the cab
Other electrical accessories	Fast dispatch support system (for charging chassis battery)

Vehicle data

Data name	Amount
Chassis frame number rubbings	1
Engine number rubbings	1
Driver's Manual	1
Product warranty manual, warranty card	1
Vehicle conformity certificate	1
Chassis 3C certification mark	1
Vehicle operation and maintenance instructions	1
Vehicle certificate	1
Vehicle 3C certification mark	1
Electrical schematic diagram of upper garment	1
Operating instruction of fire pump	1
Operating instruction of roof Turret	1
Vehicle conformity certificate	1

2.More Photos of Fire Truck:
3.Company information:
China Truck International Limited specialized in all kinds of modified vehicles of truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
4.FAQ
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
