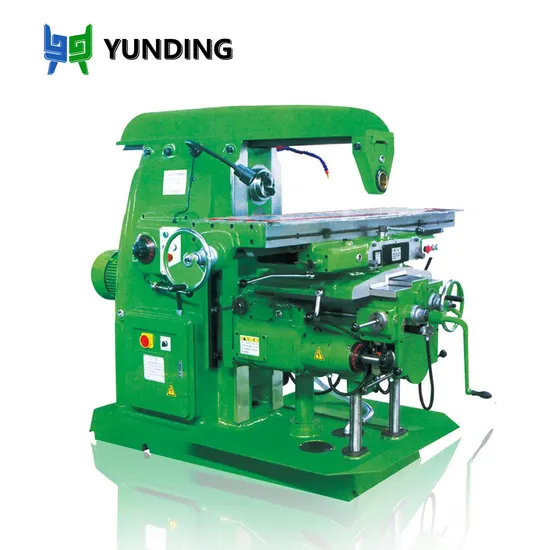

Metal Multi Purpose Lifting Table Machine Tool X6132 Universal Milling Machine

Product Description

Product Description
Metal Multi Purpose Lifting Table Machine Tool X6132 Universal Milling Machine
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Main technical specifications	Specifications	Units	X6132
	Table size	mm	1325x320
	Table load	kg	500
	T slot(number-width-pitch)	mm	3-18-70
	Table travel	mm	700/680
			255/240
			320/300
	Range of table feed	mm /min	XY:23.5-1180
			Z:8-394
	Rapid speed of table	mm /min	XY:2300
			Z:770
	Spindle taper		ISO50 7:24
	Spindle speed range	rpm	30-1500 (18 steps)
	Swivel angle of table	°	±45
	Distance between spindle axis and table surface	mm	30-350
	Spindle motor power	kw	7.5
	Feed motor power	kw	1.5
	Weight	kg	2700/3000
	Overall dimension	mm	2300×1770×1700

Realistic photos

Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
