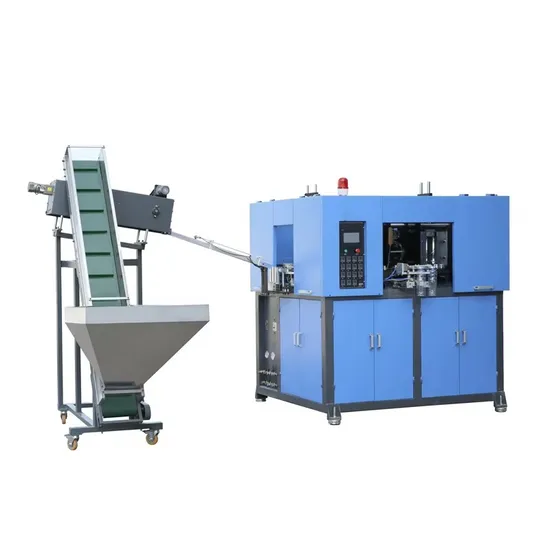

New Fully Automatic Blowing Machine with 2 Cavity for Plastic Water Bottles

Product Description

-----Advantage-----

1.Using advanced microcomputer control system, stable performance.
2.Each mechanical action has a safety self-locking device, when a process fails, the program will automatically switch to a safe state.
3.Each action is driven by an air cylinder, no oil pump is used, which has the advantages of no pollution and low noise.
4.The production process is fully automated, which has the advantages of low investment, high efficiency, convenient operation, simple maintenance, and safety.
5.The infrared lamp tube is used for heating, with strong penetrating power, the preform is heated by rotation, orbital. revolution, heating is even, fast and reliable. 6. The width and height of the lamp tube and reflector in the heating zone can be adjusted to suit the heating of preforms of different structures, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying tunnel.
7.The air circuit design divides the action and blowing into three parts to meet the needs of different air pressures for blowing and action.
8. The cooling system achieves the ideal cooling effect. 9. Easy to install and start. 10. The scrap rate of finished bottles is less than 0.2%.
-----Product Paramenters-----

Type	Item	Unit	Technical data
Container	Number of Cavities	PC	2
	IMax.Capactity	L	2
	Max.Neck Diameter	MM	30
	Max.Body Diameter	MM	99
	Max.Bottle Height	MM	320
	Theoretical Output	B.P.H	3000
Molding	Opening stroke	MM	120
	Mold thickness	MM	200
Power specifications	Max. heating Power	KW	32
	Total electric power of installation	KW	36
	Actual power consumption	KW	15
	Number of lamp tubes	PCS	32
	Voltage/ Frequency	V/HZ	380V 50HZ/220V 60HZ
Air compressor specifications	High -pressure working pressure	MPA	1.6m³3.0MPA
	Low-pressure exhaust volume	MPA	1.6m³1.2MPA
	Blowing bottle pressure	KG/CM²	≤30
Machine	Size(L*W*H)	M	3350*1620*1900mm
	Weight	KG	2500
Remark	1. The theoretical output is based on 500ml water bottle, the final production capacity is based on the preform, bottle design and volume. 2. The high pressure air consumption is based on the 500 ml water bottle ,the finallconsumption will depend on the bottle volume and capacity.

The main steps of the bottle blowing process of the bottle blowing machine:
1) First put the heated plastic embryo into the mold;
2) Tighten the mold with a clamping cylinder;
3) Use high pressure or mechanical structure to lock the prototype;
4) Medium and high pressure pre-blowing, while stretching the cylinder to expand the billet;
5) High-pressure blowing, the preform is formed according to the mold, and the pressure is maintained for a certain period of time;
6) Release the high pressure in the forming bottle, reset the cylinder - take the bottle.
The blowing process of the bottle blowing machine main steps:
1. PET plastic bottle blowing system (semi-automatic/automatic)
2. Water treatment system to purify water (sand filter, carbon filter, RO/UF, ozone sterilizer, UV sterilizer, etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 single piece rinse-fill-capper
5. Labeling machine (PVC sleeve labeling machine/OPP hot melt adhesive labeling machine/self-adhesive labeling machine)
6. Loader load cap
7. Coding machine (inkjet printer/laser printer)
8. Terminal packaging (PE film shrink packaging machine/carton packaging machine)
-----Certifications-----
-----Company Profile-----
Taizhou Pai Rui Packaging Machinery Co., Ltd. is a leading supplier to provide the plastic machine, packaging machine and plastic products. The company was originally founded in Taizhou with convenient access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Nowadays, we have rich experience with a world-class design team, a network of high-quality manufacturers and a team dedicated to professional services. Our products are able to support any part of the plastic producing cycle. We provide professional machines, including blowing machine, injection molding machine, and packing machine etc. The associated company's factories also supply customized plastic products with good quality and lower price. We also provide various of plastic labels as customers' requirement. Recently, the company started international business and has established a very stable and positive win-win partnership with customers.
-----Packing&Delivery-----

The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack it according to customers special request.
-----Our Partner-----
-----FAQ-----
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc.
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
Q5: How can we get the exact price of plastic machine? A5: - Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
