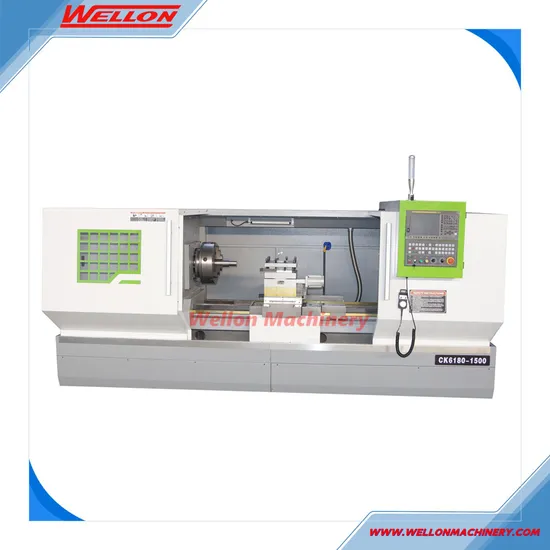

CNC Lathe Machine Ck6180 Heavy Duty Automatic Turning Lathe Machine Price
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6180
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
CNC Lathe Machine Ck6180 Heavy Duty Automatic Turn
Max Swing Over Bed
800mm
Spindle Bore
82mm
Length
1000 2000 3000mm
Transport Package
Ply Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84589100
Production Capacity
100 PCS/Month
Packaging & Delivery
Package Size
320.00cm * 225.00cm * 250.00cm
Package Gross Weight
3200.000kg
Product Description
Product DescriptionProducts Description:
Performence Features:
This is CNC horizontal lathe is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.
Technical parameter:
| Model | Unit | CK6180 |
| Max swing over bed | mm | 800 |
| Max swing over slide | mm | 550 |
| Distance between centers | mm | 1500 |
| Spindle bore | mm | 82 |
| Spindle taper | mm | MT6 |
| Spindle speed | r/min | 90-1200 |
| 3 jaw chuck diameter | mm | 350 Manual type |
| X axis rapid moving speed | m/min | 4 |
| Z axis rapid moving speed | m/min | 4 |
| X axis travel | mm | 420 |
| Z axis travel | mm | 900 |
| Tail stock quill diameter | mm | 100 |
| Tail stock quill travel | mm | 150 |
| Quill taper | MT5 | |
| Guide way width | mm | 400 |
| Tool post shrank size | mm | 25X25 |
| Re-positioning accuracy | mm | 0.005 |
| Main motor power | kw | 11 |
| Coolant pump motor power | W | 125 |
| Machine width x Height x Length | mm | 1710x1740x2800 |
| Machine weight | kg | 3200 |
| Max Loading weight | kg | 800 |
Standard:
Siemens 808D CNC system 4-position electrical turret
Manual 3 jaw chuck
Manual tail stock
Double pull door semi-enclosed protection
Optional:
CNC system:Fanuc,GSK etc
Hydraulic chuck
Hydraulic tail stock
Full closed cover Company Profile
