HDPE 5liter Engine Oil Bottle Extrusion Blow Molding Machine

Product Description

Automatic HDPE 5L Bottle Jerry Can Blow Molding MachineIt is an extrusion blow molding machine for making plastic bottle or Jerry can with a capacity less than 5 liter. The raw material is high density polyethylene resin, one of the most widely used and cheap plastics used for producing containers for daily life liquid, chemicals, and other industrial liquids etc.
The specification of one typical HDPE 5 liter bottle with handle is as follows:

Dimensions:	183*133*278mm
Weight:	160~200g
Neck Dimension:	DIN38
Label Surface:	120*150mm
Top Fill Capacity:	5.5L
Standard Colors:	virgin(white), gray, black etc

How to select a best fit blow molding machine for producing the 5 liter HDPE bottle? Bottle specifications with all information such as raw materials, dimensions, weight, neck size, neck design shall be provided to blow molding machine manufacturer. CAD and 3D modeling drawings of bottle shall be provided to blow molding machine manufacturer. *If buyer couldn't provide above information for the bottle, buyer could deliver bottle samples to machine seller. We have engineers to do the measurement of bottle and make drawings and modeling of the bottle. Our engineers also could revise the bottle design to avoid IP troubles as per buyer's request. Production rate of the bottle: bottles per hour, monthly rate or annual rate is the major parameter for configuring the plasticizing unit(extrusion capacity), mold cavities and die heads. Automation of bottle production: Manual or automatic dosing of HDPE resins with color master batches and recycled chips; Manual or automatic blending of HDPE resins with color master batches and recycled chips; Transportation to hopper; As for bottles made by extrusion blow molding technique, the trimming or de-flashing of bottles is inevitable. Generally, all regular bottles could be trimmed or de-flashed automatically simply by the secondary mold equipped with pneumatic cylinder. Bottle collection or transportation to next process Packing, palletizing, or labeling, filling etc.

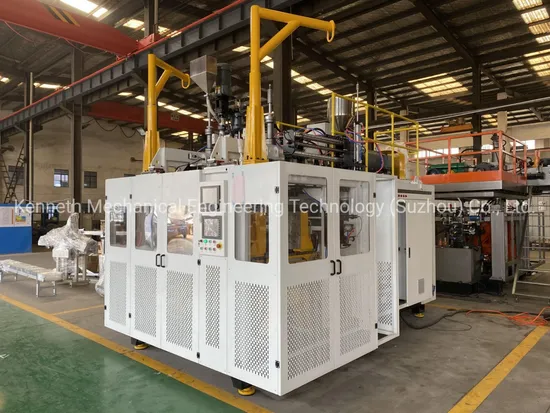

Here is some information for a fully automatic extrusion blow molding machine for making the standard 5 liter HDPE bottle:
Highlights of Machine
*Production rate: 300~360pcs of 5 liter HDPE bottles per hour
*Fully automatic production
*Compact design
*User friendly control&operation
*Full aspect of human safety protection
*Plasticizing capacity: 110kg/hr HDPE
*Hydraulic station with energy accumulator provides powerful hydraulic force
*Mold fast-switch tooling
*Auto loader
