Segregation Walkway Warehouse Construction Site Roadside Pedestrian Barriers

Product Description

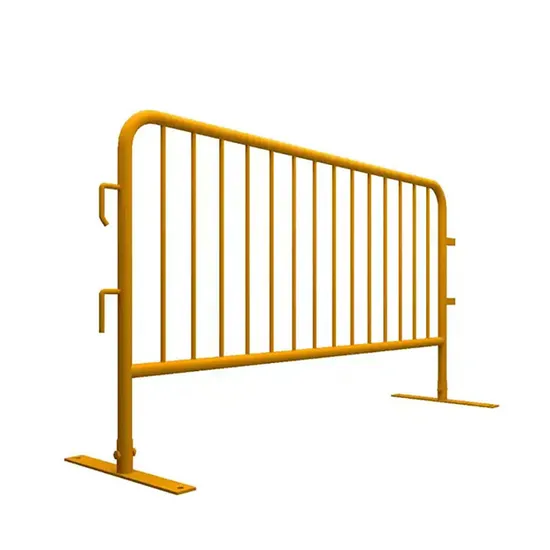

Product Description All barriers are manufactured with a formed tubular frame and offer a choice between a welded mesh and solid bar infill. As standard all barrier systems are hot-dip galvanized for durability, or as an addition a powder coating option can be supplied to match a corporate image . Pedestrian barriers are most commonly seen at outdoor events where the safe direction of pedestrian traffic is required, however they can also be seen on construction sites and road works.
Feet type
Cross Feet:
With fixed leg welded to the frame permanently.
Ideal for public event areas where the speed of installation, dismantling and high security are the main concerns.
Perfect for directing foot traffic.
Bridge Feet:
With removal and replaceable flat legs bolted on the panels.
Easy storage, transportation and stacking together. Much more stable and safer.
Flat Feet/ Detachable Feet:
Bridge shaped legs. Removal and replaceable bases. The most stable type.
Flat leg design minimizes the trip hazard.
Product Parameters

crowd control barrier / pedestrian barriers
Material	galvanized tube, iron tube, steel tube
Panel size	1.1x2.1m,1.1x2.2m,1.1x2.5m (Or customized)
Outer tube	25mm,32mm,38mm,42mm,48mm
Frame thickness	1.5mm, 1.8mm, 2.0mm
Inner tube	12mm,14mm,16mm,20mm,25mm O.D.
Inner tube thickness	1.0mm, 1.2mm, 1.5mm,
Spacing	60mm,100mm,190mm&200mm
Feet	U / Y / flat , etc.
Surface treatment	hot dipped galvanized,electro galvanized, spray paint, powder coated
Color	dark green, black, white, brown, etc.

Application

Packaging & Shipping
Certifications
FAQ Q:Why choose us?A: Save Time, Save Cost, and Safety ! Each of our customers proved this!Q: How about the payment terms?A:We usually use the T/T,L/C,Trade assurance service optional for over $100K order. L/C optional if over $10k. Paypal optional if below $500.Q: How about the delivery time?A:Usually within 20 days,customized order may need longer time.Q:Can you offer free sample?A:Yes, but usually the customer need to pay the freight,We'll send back the courier charge if you make an order.Q: Can I have your products with my own logo on it?A: Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg. We would send you layout art with your logo on our products to check. The setup cost would be quoted per artwork.Q: Are you a manufacturer?A:Yes, we have been in providing the professional products in wire mesh field for 20 years.
