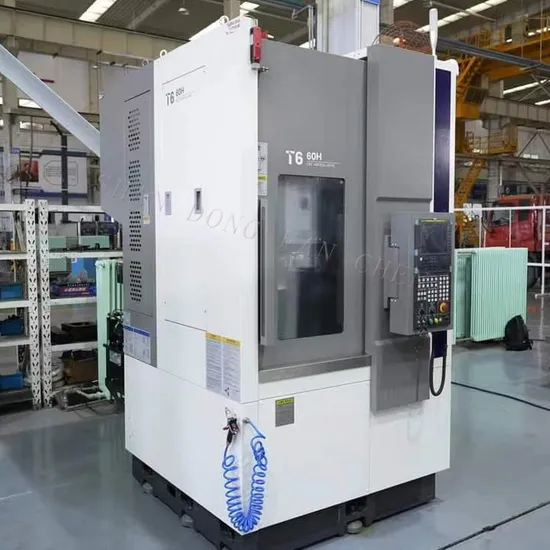

New CNC Vertical Lathe T6-60h with a Rotation Diameter of 700 and a Cutting Diameter of 600
| US$20,000.00-36,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T6-60H
Type
Vertical Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
X Axis Travel
330mm
Z Axis Travel
653mm
Max.Cutting Diameter
600mm
Max.Swing Diameter
700mm
Max.Cutting Height
650mm
Spindle Nose and Tape
A2-11
Standard Chuck Size
15inch
Center Height
125mm
Transport Package
Wood
Specification
2235*1570*3030
Trademark
FANCHEN
Origin
China
HS Code
8457101000
Packaging & Delivery
Package Size
2235.00cm * 1570.00cm * 3030.00cm
Package Gross Weight
7500.000kg
Product Description
T6-HT6-H series CNC vertical lathe is our new upgraded technology structure of the third generation of new CNC vertical lathe, with excellent rigidity, stability and processing accuracy, supporting imported high-quality functional parts, widely used in new energy, automotive, bearing and other industries processing, to provide customers with excellent experience.
| Item | Unit | T6- 60H |
Accuracy grade | IT7/IT6 IT7/IT6 | |
| Technical parameters | ||
| Max.cutting diameter | mm | Φ600 Φ600 |
Max.swing diameter | mm | Φ700 Φ700 |
| Max.cutting height | mm | 650 |
| Spindle | ||
Spindle nose and taper | A2-11 2-11 | |
Standard chuck size | inch | 15(Optional18,Optional21) 15(Optional18,Optional 21) |
| Max.spindle speed | R/min | 1100/2500 |
| Max.spindle torque | N/M | 1158/1160 |
| Main motor output power continous/30min | KW | 18.5/26/22/30 |
| X\Zaxis | ||
| X X axis rapid traverse | m/min | 18/20 |
| ZZ axis rapid traverse | m/min | 18/20 |
| X X axis travel | mm | 330 |
| ZZ axis travel | mm | 653 |
| Turret | ||
| Type | 8Horizontal 8 positions servo turret | |
| Center height | mm | 125 |
Turret rotary repeat positioning | ±1.6 ±1.6 | |
| Positioning | ||
| X axis | mm | 0.008/0.005 |
| Z axis | mm | 0.008/0.005 |
| Machine weight | kg | 7500 |
| Machine dimensions | mm | 2235×1570×3030 2235×1570×3030 |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
