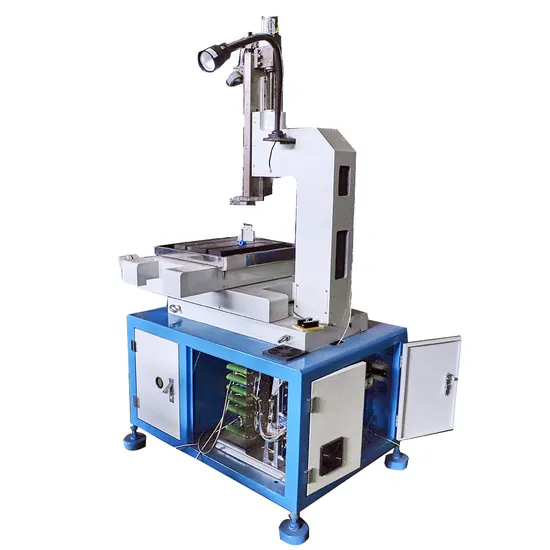

Dd703.40 High Speed Spark Drilling EDM, Micro Hole Drilling Machine

Dd703.40 High Speed Spark Drilling EDM, Micro Hole Drilling Machine

US$4,500.00-12,000.00 1 set (MOQ)

Basic Info.

Model NO.
DD703.40
Structure
Micro Hole Drilling EDM
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
0.3~3.0 mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Worktable Travel(X *Y)
400*500mm
Main Spindle Speed
60 Rpm
Water Tank
25L
Power Supply
3n-380V/50Hz
Transport Package
to Be Packed in Wooden Cases, Suitble for Export
Specification
1800*1380*1800mm; weight 1700 kg
Trademark
TOPSCNC
Origin
Taizhou, Jiangsu, China
HS Code
8456301090
Production Capacity
100set/Month

Packaging & Delivery

Package Size
2100.00cm * 1550.00cm * 2200.00cm
Package Gross Weight
1700.000kg

Product Description


Technique parameters
Technique parameters unit DD703.40
Worktable size mm 460*690
Worktable travel mm 400*500
Z-axis travel by motor drive mm 300
Z-axis travel by hand control mm 200
Main spindle speed rpm 60
Diameter of electrode mm φ0.3-φ3
Distance from guider to worktable mm 80~280
water tank L 25
Filtering model Shallow-gap filter
Working medium water
MAX.working pressure Mpa 7
Power supply 380V,3Ph,50Hz
Max.woking current A 30
Power consumption Kw 3
Max. workpiece weight kg 500
Machine weight kg 1700
Machine demensions mm 1800*1380*1800

Our Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China


Web:topscnc.en.made-in-china.com
