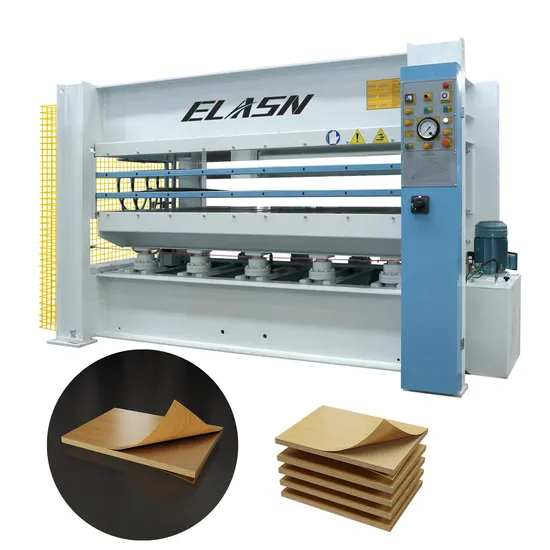

Elasn 4X8 Feet Sheet Short Cycle Automatic Wood Veneer MDF Melamine Hydraulic Laminating Hot Press Machine for Wood Veneer Pressing

Product Description

Product Description
Elasn 4x8 Feet Sheet Short Cycle Automatic Wood Veneer MDF Melamine Hydraulic Laminating Hot Press Machine for Wood Veneer Pressing
Wood veneer hot press line is used for the veneer lamination of the man-made panels as base material, such as particle board, plywood, chipboard or MDF, with natural wood veneer decorative skin.
The optimum lamination quality of various types of panels is ensured by its precise pressure regulation and precise temperature control system.
The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform;
The oil pipeline is dredged, heated evenly, and has a long service life.
Detailed Photos
Product Parameters

Model	ELA4X8/16
Total Pressure	1600KN
Rated pressure	28MPa
Dimension of platen	2-2700x1370x42mm
Working layer	1
Opening	250mm
No. &diameter of main oil cylinder	10-Φ85mm
No. &diameter of raising oil cylinder	2-Φ85mm
Closing speed	50mm/s
Speed of conveying	10-30m/min (frequency control)
Overall size	3394x3409x2475mm
Install power	44. 45 KW
Gross weight	8500KG
Voltage	3PE 380V 50HZ (Customized)

Remark: There are many different types, for reference, we just show you one type parameter, for more details of other customized models, please contact us. Different Configurations

Machines' Drawings

Packaging & Shipping
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.

About Us
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, central area of China, a traditional industrial city with rich culture and history. Away from Xinzheng international airport only half an hour, also have train to every main city of China.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
"To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China."
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Workshop Photo
Customer Feedback
FAQ
1. What's the heating source of the wood hot press machine?
We suggest you use a thermal oil boiler as the heating source.
2. Can you send engineers to our factory?
Yes, we can send engineers to your factory to help you install the machines and train your workers.
3. What's the spare parts of the wood veneer hot press machine?
We will send you a list of the spare parts, you can decide whether to buy them in your local market or from us.
