Digital Weight Indicator wireless dynamometer WITH LCD DISPLAY

Product Description

Product Description

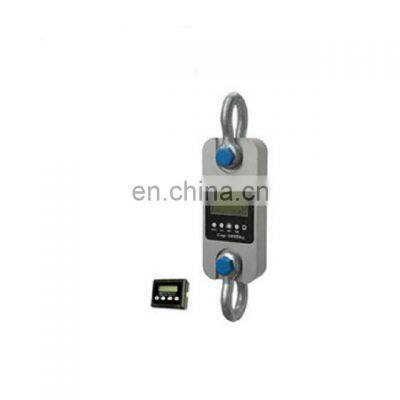

Product DescriptionDigital Weight Indicator wireless dynamometer WITH LCD DISPLAYDL-W1 wireless dynamometer is an extremely well-built instrument for industry us ,as a standard wireless tool offer universal applications, the indicator 180 have USB port, Communicate with PC, Solve many laptops without serial port problem. DL-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 180 indicator.Detailed ImagesBody protection: Aluminum and alloy steel capacities are powder coated.Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.Units: Units are clearly display on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.Functions: wireless indicator with many functions: Zero, tar, Low battery warnings, peak hold, overload warning. User calibration(with password).Set-Point: Two user programmable Set-Point can b used for safety and warning applications or for limit weighing.Package: Packed with carry case, easy to bring.Indicator key: 4 local mechanical keys: ”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”. ApplicationDimensionsSpecificationsMain technical data of DL-W1 wireless load cell Body Display 25mm (1’’) 5digits LCD with backlight Ultimate Load 400% F.S. Indicator Display 25mm (1’’) 5digits LCD with backlight Battery Life ≥50 hours Power on zero range 20% F.S. Ultimate Load 400% F.S. Manual Zero Range 4% F.S. Body Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 Tare Range 20% F.S. Indicator Battery “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 Stable Time ≤5 seconds Operating Temp. - 20℃ ~ + 50℃ Overload Indication 100% F.S. + 9e Operating Humidity ≤85% RH under 20℃ Max. Safety Load 125% F.S. Wireless Distance Min. 80m(default) [200m(optional)]Weights Model DL-W1-1 DL-W1-2 DL-W1-3 DL-W1-5 DL-W1-10 Unit Weight(kg) 1.6 2.1 2.1 2.7 10.4 Weight with shackles(kg) 3.1 4.6 4.6 6.3 24.8 Model DL-W1-20 DL-W1-25/30 DL-W1-50 DL-W1-100 DL-W1-200 Unit Wight(kg) 17.8 25/25 39 81 210 Weight with shackles(kg) 48.6 73/73 128 321 776Packing & DeliveryContact InformationDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:ndt at TEL:86-411-39685079Whatsapp:+8613164541149 Skype:tmeasurement04web:
