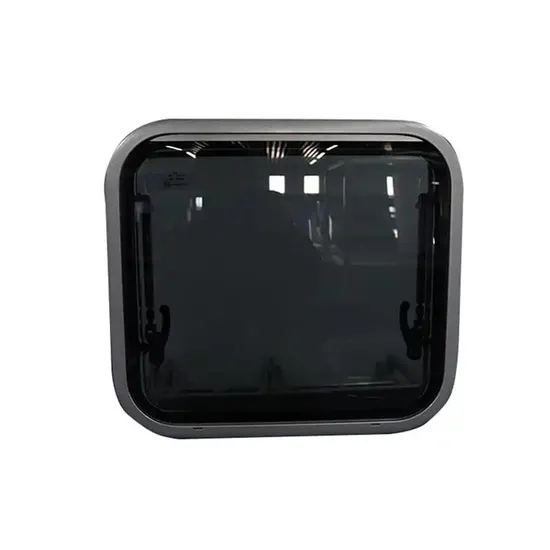

Curved Aluminium Frame RV Window with Double Glaze Acrylic and Customizable Color

Product Description

Product Description
Feature & Functions:*Durable Aluminium alloy hinge ensuring long-lasting performance
*Specialized rubber seal around the hole providing superior waterproof protection
*Innovative telescopic strut allowing the window to stay open at multiple angles
*Two secure lock positions with an ergonomic plastic handle for ease of use
*Double glazing dome top that is UV resistant and E-mark certified for safety
*High-quality, robust ABS inner shell ensuring optimal insulation and durability
*Versatile blind system can be activated individually or locked together in a desired position
*Maximum opening angle: 45° for optimal ventilation and accessibility

Product name			Crw curved roof window
Colour			Custom color
Logo			Custom printed logo

Specifcation HxW(mm)	Cut hole HxW(mm)	Hole fillct(mm)	Weight(kg)
300x500	303x503	R70	2.6
300x700	303x703	R70	3.3
350x600	353x603	R70	3.2
350x1200	353x1203	R70	3.88
350x1450	353x1453	R70	6.9
400x700	403x703	R70	4.0
400x1200	403x1203	R70	6.4
450x500	453x503	R70	3.3
450x610	453x613	R70	3.9
450x900	453x903	R70	5.4
450x1000	453x1003	R70	5.9
450x1100	453x1103	R70	6.4
500x300	503x303	R70	2.5
500x450	503x453	R70	3.3
500x520	503x523	R70	3.5
500x900	503x903	R70	5.8
500x1200	503x1203	R70	7.4
520x500	523x503	R70	3.5
520x900	523x903	R70	5.9
550x700	553x703	R70	5.0
550x900	553x903	R70	6.2
550x1100	553x1103	R70	7.3
550x1450	553x1453	R70	9.3
600x350	603x353	R70	3.2
800x1000	803x1003	R70	8.9
800x1200	803x1203	R70	9.29
900x900	903x903	R70	8.9

Transport package drawing
FAQ
A: Are you a trading company or manufacturer?
B: We are an industrial and trade integrated company with over a decade of professional experience. A: What's your MOQ for OEM
products?
B: The MOQ generally is 500 pcs per style.
A: What's the sample delivery time and mass production delivery time?
B: Samples generally take 7 days, and mass production typically takes around 20 days.
A: What are the payment terms?
B: For small orders, payment is upon delivery. For large orders, a 30% deposit is required after signing the contract, with the remaining 70% due before
delivery, ensuring the payment is cleared before dispatch.
A: May I visit your factory?
B: Certainly, you are welcome at any time. We can arrange to pick you up from the airport or station.
