9kv 5A-R Series Electrostatic Dust Removal Air Purification and Disinfection Equipment Supporting High Voltage Power Supply
| US$15.28 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RHF
Certification
RoHS
Color
Black
Type
OEM
Internal Structure
On-Off Type
Power Source
Push-Pull Type
Connection
Plug In
Brand
Huachenyuan
Transport Package
Box
Specification
75x75x28(mm)
Trademark
Huachenyuan
Origin
China
Product Description

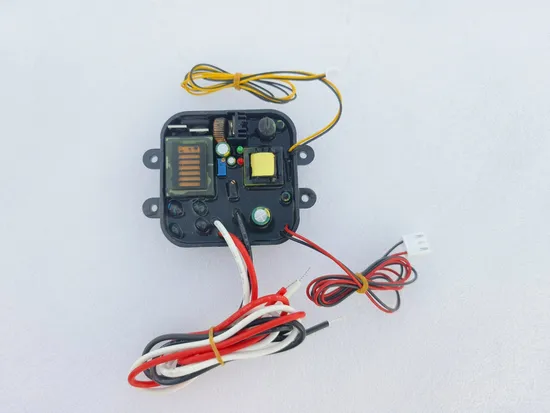

Product Description RHF high-voltage power supply is a supporting power supply for electrostatic dust removal and air purification and disinfection equipment. It has two working modes: constant voltage and current limiting or constant current and voltage limiting. It has stable output voltage and controllable current. It has feedback on working, cleaning and fault status. It has a built-in programmable single-chip microcomputer chip, counter protection, timed restart, arc protection, and adjustable sensitivity.*Soft start
*Adjustable voltage and current
*Dual closed-loop control
*RoHS compliant
*Pouring silicone
Typical applications:
Air purifier, disinfection machine, return air purifier
| Specifications Input voltage: 12~24VDC or 110~220VAC Output high voltage: 8/4kV Output polarity: Specify positive or negative polarity when ordering Output current: 600uA Output voltage accuracy: 0.5% Signal output: operation, cleaning, fault Protection mode: arc, short circuit, undervoltage, overload protection Operating temperature: -10ºC~+50ºC Storage temperature: -20ºC~+80ºC Humidity: 10%~90% without condensation Weight: about 190g Optional functions *External infrared remote control *External voltage regulation *Serial communication *Asymmetric voltage output |
