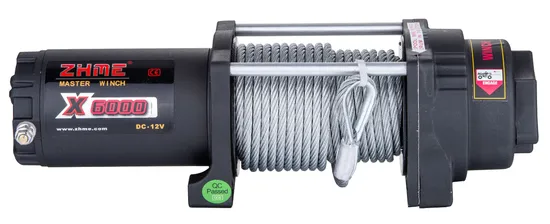

6000lbs ATV Winch for Mini Jeep

Product Description

6000LBS ATV WINCH FOR MINI JEEP

Specifications
Rated line pull:			6000Lbs(2722kgs) single line
Motor:			Permanent magnetic motor 12V
Gear Train:			3 stage planetary
Gear ratio:			198.: 1
Braking action:			Automatic in the drum
Fairlead:			4-way roller fairlead
Wire rope:			6.5mm×15m
Drum size:			51mmx122mm
Dimensions:			381mmX114mmX115.5mm
Mounting bolt pattern:			167mmX76mm
N.W:			19lbs(8.6kgs)
Packing:			480mm×250mm×220mm(1000pcs 20'container)
Line speed and motor current (first layer)
line pull			Lbs		0	2000	3000	4000	6000
			Kgs		0	907	1360	2041	2722
Line speed			FPM		16	10.5	8.2	7.2	3.9
			MPM		4.9	3.2	2.5	2.2	1.2
Motor current			Amps		17	90	120	150	186
Line pull and cable capacity
Layer of cable					1	2	3	4
Rated line pull per layer			Lbs		6000	4583	3933	3441
			Kgs		2722	2078	1784	1560
Cable capacity per layer			Ft.		12.5	26.9	43.3	49.2
			M		3.8	8.2	13.2	15

Shipping Service
We can arrange you transportation, we have our own shipping and express company, or we can use your forwarder.

How to choose a ZHME Winch for your vehicle
Can't decide which winch is right for you? The best way to choose is to calculate the line pull needed for the application. To do this multiply your vehicle's Gross Vehicle Weight (GVW) by 1.5 - this will give an approximation for how big your winch should be. Typically, the first layer of rope around the drum is the max load the winch is capable of. Each additional layer deducts about 10% off the rated line pull. So for a winch rated 9,500lbs, the second layer will pull 8,550lbs, the third 7,700lbs, etc. A loss of pulling power can also be experienced when the rope isn't spooled evenly on the drum. So re-spool your winch before you go out!
