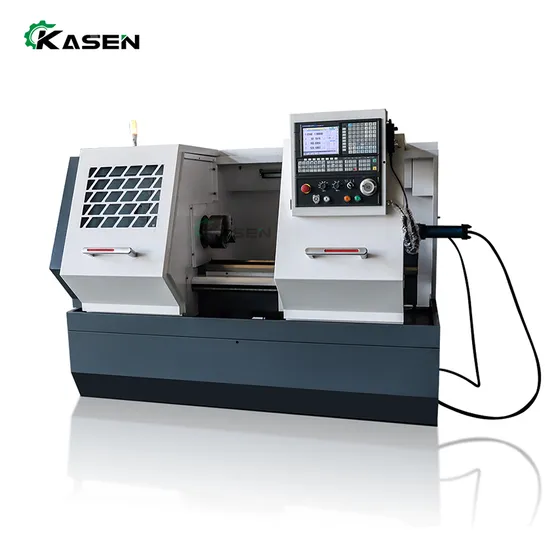

Higher Precision Hot Sale GSK System Ck6150 Horizontal CNC Lathe Machine
Basic Info.
Model NO.
CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Motor
5.5kw
Tail Stock Sleeve Taper
Mt5
Thru-Hole of Spindle
52mm
Repeatability Error
0.01mm
Max.Swing Over Bed
400mm
Max.Work Piece Length
750/1000mm
Tail Stock Center Travel
150mm
Color
Customizable
Spindle Taper
Morse 6
Spindle Speed
90-1800rpm
Voltage
220V/380V
Positioning Accuracy
0.005mm
Repeatability (X/Y/Z)
0.003mm
Width of Bed
360 mm
Tool Post Stations
6/8
Transport Package
Plywood Wooden Box
Specification
2750*1650*1850mm
Trademark
Kasen
Origin
China
HS Code
8458110090
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
275.00cm * 165.00cm * 185.00cm
Package Gross Weight
1700.000kg
Product Description
CNC Automatic Lathe CK6140 Flat Bed CNC Lathe MachineProduct Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:360mm bed width,4 station electric tool postSpindle hole 52mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Spindle hole 82mm,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters
| PECIFICATIONS | Units | CK6136 | CK6140 | CK6150 |
| Swing over bed | mm | 360 | 400 | 500 |
| Swing over cross slide | mm | 200 | 220 | 280 |
| Distance between centers | mm | 750/1000 | 750/1000 | 750/1000/1500/2000 |
| Spindle bore | mm | 52 | 52(Optional 82) | 82 |
| Spindle bore taper | - | MT6 | MT6 | MT6 |
| Spindle nose type | - | C6 | C6 | C6 |
| Spindle speed steps | - | Manual 2 steps | Manual 2 steps | Manual 2 steps |
| Spindle speed range | rpm | L:100-500 H:500-1800 (Optional 90-1800 stepless) | ||
| Turre/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 |
| X axis travel | mm | 200 | 230 | 280 |
| Z axis travel | mm | 750/1000 | 750/1000 | 750/1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
| Z axis rapid traverse | mm/min | 10000 | 10000 | 10000 |
| Tailstock quill diameter | mm | 75 | 75 | 75 |
| Tailstock quill taper | - | MT5 | MT5 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 |
| Main spindle motor | kw | 4 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.9 | 0.9 | 0.9 |
| Weight for 750 | kg | 1600 | 1700 | 1800 |
| Weight for 1000 | kg | 1700 | 1800 | 1900 |
| Weight for 1500 | kg | 1800 | 1900 | 2000 |
| Weight for 2000 | kg | 1900 | 2000 | 2100 |
| Dimension for 750 | mm | 2200x1600x1650 | 2200x1650x1700 | 2200x1700x1750 |
| Dimension for 1000 | mm | 2500x1600x1650 | 2500x1650x1700 | 2500x1700x1750 |
| Dimension for 1500 | mm | 3000x1600x1650 | 3000x1650x1700 | 3000x1700x1750 |
| Dimension for 2000 | mm | 3500x1600x1650 | 3500x1650x1700 | 3500x1700x1750 |
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
