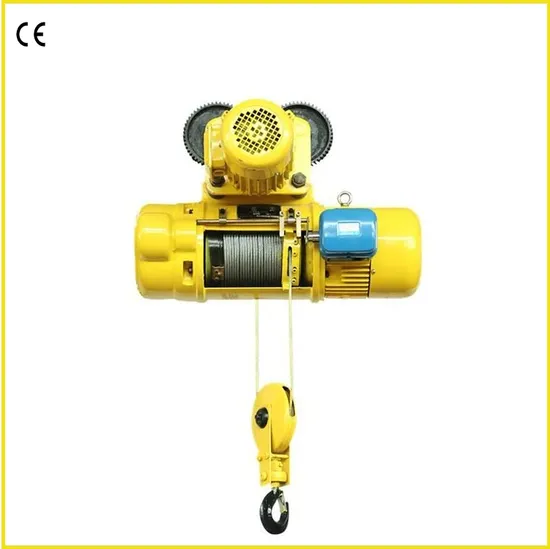

CD1/ MD1 Wire Rope Electric Hoist 220 440 Volts Small Lifting Hoist

Product Description

Product Description
CD1 wire rope electric hoist is a light and small lifting equipment with compact structure, light weight,
small size, universal parts and easy operation.
Reducer: The reducer adopts hard tooth surface transmission design, long life and high mechanical
efficiency.
Motor: The motor uses a conical rotor brake motor. The motor load duration is 25%.
Motor protection: degree of protection: IP54
Insulation class: Class B
Limit: There are upper and lower two-way safety limit devices.
Push button switch: 36V safety voltage switch, according to customer needs, the hoist can be equipped
with a wireless remote control. Product Parameters

Model	CD1-0.5	CD1-1	CD1-2	CD1-3	CD1-5	CD1-10
Capacity(ton)	0.5	1	2	3	5	10
Lift height(m)	6	6	6	6	9	9
Lift speed(m/min)	8m each min
Travel speed(m/min)	20m each min
Sizes of Wire rope	6×37-4.8	6×37-7.4	6×37-11	6×37-13	6×37-15	6×37-15
Sizes of I-beam	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Power	0.8Kw	1.5Kw	3Kw	4.5Kw	7.5Kw	13Kw
Voltage(v)	380	380	380	380	380	380
Frequency(Hz)	50	50	50	50	50	50
Phase	3	3	3	3	3	3M

Detailed Photos

Packaging & Shipping

1. Are you factory or trading company?
We are direct factory.
2. Is your products customized?
Yes, because the working condition are different, all our products can be customized depending on detail requirement!
3.How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons. You can choose any of them, just tell us!
4.About sample?
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
5.How long does it take to receive my order?
About 30 Days from we get the down payment, 20 days for sample order.
6. What's your quality guarantee?
We have different kinds of products which can meet different quality standard. Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
7. What advantages we have?
Rich experience: We have more than 20 years experience in this industry. Each of our product must be strictly tested before delivery. Unqualified products are not allowed to delivery.
8. How about the after sale service?
We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. We can arrange engineers to do service for you.
