Rough Terrain Electric Diesel Working Lift Tracked Driven Scissor Lift on Tracks

Product Description

KINGDA HEAVY-DUTY
Professional manufacturer of high-altitude operation equipment Efficient high-altitude operation solution
Self-propelled Scissor Lift
Platform Height:12m
Product Feature

Electrophoresis treatment is adopted for the structural parts of the wholevehicle,and the anti-corrosion performance is more than three times of that of the electrically driven walking of similar products.

Higher working height at the same number of fork arms.

Electrically driven walking, more stable travel braking.

Double load system to maximize the efficiency of equipment use.

High-strength steel is adopted for key parts to improve the overall strength.

Standard forklift holes and special lifting points for ease of equipment loading and unloading.

The design of central fork arm can effectively improve the stability and comfort of the platform.

Standard Configuration

Proportional control	Oil tube explosion-proof system	Hand brake release
Platform self-locking door	Fault diagnosis system	Lanyard attachment point
One-way extension platform	Tilt protection system	Fixed and lifting points
Full travel	Action buzzer	Standard transport forklift holes
Solid traceless types	Electric horn Work schedule	Emergency stop system
Two-wheel drive	Safety maintenance bracing piece	Maintenance free battery
Two-wheel steering	Charging protection system	GPS
Automatic braking system	Stroboscope light	Remote monitoring and lease management platform
Emergency descent system	Fixed guardrail	Automatic pothole protection

Specification Parameters

Model	SS14E
Size	Metric
Maximum Platform Height	13.8 m
Overall machine length	2.83 m
Overall machine width	1.39 m
Overall machine height (fence not folded)	2.62 m
Overall machine height (fence folded)	2.1 m
Working platform size (length × width)	2.64×1.12 m
Platform extension size	0.91 m
Minimum ground clearance (stow/lift)	0.09/0.02 m
Wheelbase	2.22 m
tire	0.38×0.13 m
Performance
working Load	320 kg
Working Load - Extended Platform	120 kg
Maximum number of workers (indoor/outdoor)	2/0
Maximum climbing ability	25%
Driving speed - Stowed	3.5 km/h
Driving speed- Raised	0.8 km/h
Minimum turning radius (inner/outer wheel)	0/2.1 m
Maximum allowable working angle (front and back/left and right)	3°/1.5°
Rising/Falling speed	60/67 s
power	24V DC
battery capacity	260 AH
Total Weight	3110 kg

Application
It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
Certifications


Cooperation Partner

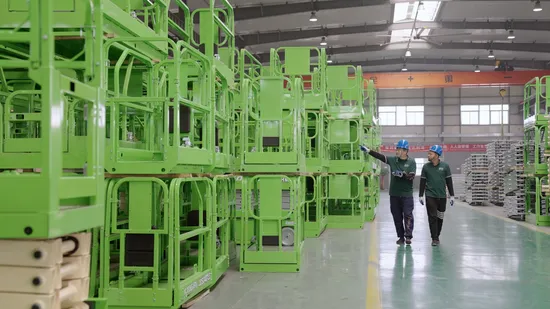

Our Factory
