Blin Machinery High Rigorous Slant Bed CNC Lathe (BL-S36/36T)

Product Description

High Precision Slant Bed CNC Lathe for SEAL processing(BL-S36S)
Features:
-Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.

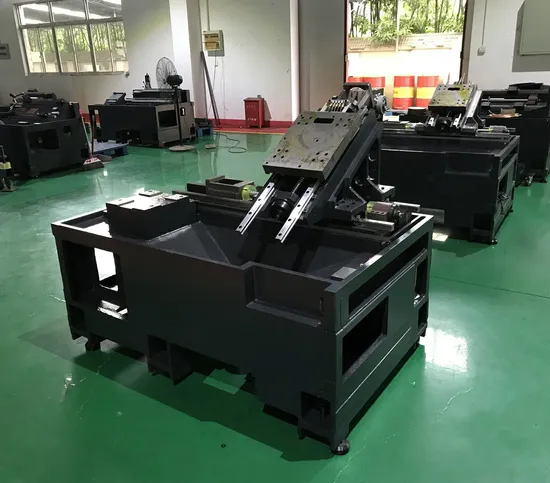

- Bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility, easy for chip conveying, convenient operation.
- Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, VDI tool plate, Robot etc.
-Adopt high-class resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability. -Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Adopt high precision pre-stretched ball screw, coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
- Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining
- Adopt VDI tool turret,especially suitable for seal making.
- Adopt two types lubrication: Spindle bearings and ball screw bearings adopt Germany KLUBER high speed long acting lubricating grease, maintenance-free. Ball screw and guideway adopt automatic centralization lubrication
- Adopt LED working lamp, energy conservation, long using lifespan
- Adopt high strength tempered glass to protect operator
- Super compact structure, big inside space, modern appearance
Specification:

Item	Specification	Unit	BL-S36S
Capacity	Max. swing dia. over bed	mm	Φ560
	Max. swing dia. over slide	mm	Φ265
Spindle	Spindle bore	mm	Φ56
	Spindle end type	/	A2-5
	Spindle speed	rpm	5000
	Chuck size	/	6''(Manual)
	Spindle motor power	kw	5.5
X/Z axes	X axes travel	mm	270
	Z axes travel	mm	270
	X/Z axes rapid moving speed	m/min	28
	Ball screw O.D./pitch	mm	32/12
	X/Z axes linear guideway width	mm	30/35
Tool turret	Tool turret type	/	Electric(VDI)
	Tool qty	/	8 station
	Tool change time(vicinal/farest)	s	1.2/1.8
	Tool holder coulping	mm	VDI25
Coolant	Coolan pump power	w	180
	Flow	m³/h	3
Tailstock	None
Accuracy	Ex-circle finish turning accuracy	/	IT6
	Finish turning roughness	mm	Ra0.4~1.6
	Finish turning roundness	mm	≤0.003
	Positioning accuracy(X/Z)	mm	0.005/0.008
	Repeat positioning accuracy(X/Z)	mm	0.002/0.004
Others	Overall size	mm	1560×1510×1500
	N.W.	kg	2200

Main parts list:

Item	Brand
CNC controller	GERMANY-SIEMENS
X,Z axes driver&motor	GERMANY-SIEMENS
Spindle driver&motor	CHINA top-CTB
Spindle unit	TAIWAN-VOLIS
Tool turret	INDIA-PRAGATI
Ball screw	TAIWAN-PMI/HIWIN
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Lubrication system	TAIWAN-ISHAN
Chuck	TAIWAN-CHANDOX
Coolant pump	Joint-venture
MPG	USA-HEDSS
Tri-color indication lamp	KOREA-QLIGHT
Breaker	FRANCE-SCHNEIDER
AC contactor	FRANCE-SCHNEIDER
Relay	JAPAN-OMRON
DC Switching Mode Power Supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA-GATES
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coulping	GERMANY-KTR/R+W
Extensible cover	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING

Standard configuration: 30°slant bed, X/Z axes LINEAR guideway SIEMENS 808D ADVANCED CNC controller with MPG(bus-mastering structure, absolute encoder) X/Z axes driver&motor: SIEMENS servo Spindle: Spindle unit, CHINA top brand servo motor& driver 5.5kw, A2-5,bore: Φ56mm, 5000rpm Manual chuck 6'' PRAGATI brand 8 station VDI ELECTRIC tool turret(EXCLUDE tool holder) EXCLUDE Tailstock Automatical lubrication,Tri-color lamp, coolant system, working lamp, heat exchanger, pedal switch
