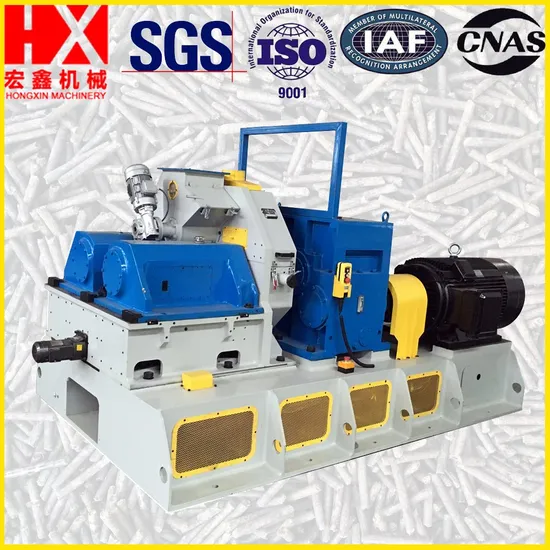

Ring Die Wood Pellet Machine Intelligent Biomass Pellet Mill Pelletizer for Biomass Fuel Wood Pellet Press Machine

Product Description

Product Photo
Product Description
HX Pellet Machines are especially fit for most kinds of bioamss raw material, such as rice hulls, peanut shells and other shell, tree branches, trunk, bark and all kinds of wood wastes, crop straws and fungus pack, etc.
HX Pellet Machines can be widely used in biomass power plant, wood processing factories, biomass fuel mills, etc, and have a very low investment but with a very short payback time.
Product Features
1) Press roller bearing external design, grease and engine oil free, 24 hours of continuous service. (normal maintenance and easy-wear parts exchanging excluded)
2) The equipment use full automatic intelligent control system, and water cooling circulatory system ,hydraulic testing system.
3) Gear box is lubricated and cooled, gear pump forces the lubricating oil into tubular oil cooler, and recycling water will cool the oil.
4) Fully automatic intelligent control system (monitoring temperature of the whole machine, oil, water and mould chamber)
5) One-touch cavity open system with limit switch, ring die and press roller change in 30 minutes (equipped with a set of special tool)
6) The press rollers interstice can be easily adjusted during working, the two press rollers can find the center automatically and make sure that interstices is symmetrical.

Product Parameters

Model	HX-1720S	HX-1030M
Main motor power(Kw)	200KW	315KW
Auxiliary motors power(Kw)	10KW	18KW
Press roller size (mm)	720mm	1030mm
Capacity (T/H)	2.5-3	4-5
Weight (T)	10	16.5
Dimension (m)	3.9 x 2 x 1.7m	4.2 x 2.3 x 2m

Company Profile
Shandong Hongxin Machinery Co., Ltd
Our company is a professional manufacturer of log debarker, wood chipper, horizontal grinder, tub grinder, hammer mill and wood pellet mill.
Our company has introduced a series of advanced equipment including CNC Lathe, CNC Milling machine, Planer, Drilling machine, Sawing machine, CNC Boring machine, Balancing machine, Coiling machine. Meanwhile, we have obtained ISO 9001, CE certificates and many patents.
With a complete understanding of the requirements of both our customer and the industry, we offer defect-free equipment and services.
