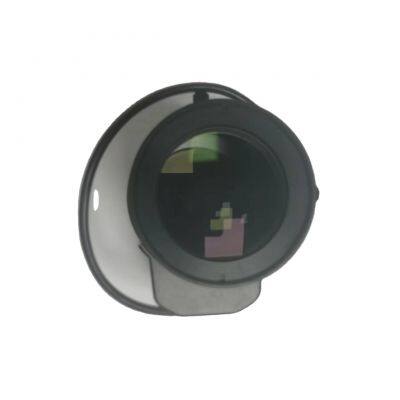

12-50mm 4X 5MP CS Mount DC Iris Zoom Security Monitoring CCTV Lens
Product Details
Product Details
Product Description
Product Description| Technical Parameters of Security Monitoring Lens | |||||||||
| No. | Model No. | Pixel | Sensor size | FL (mm) | Interface | Iris | FNO | BFL(mm) | Working temperature |
| 1 | 10-009-001 | 8MP | 1" | 12-36 | C | Manual | F1.6 | 11.6 | -20ºC~+60ºC |
| 2 | 10-009-002 | 5MP | 1/2.7" | 2.8-12 | CS | Manual | F1.8 | 7.15~13.05 | -20ºC~+60ºC |
| 3 | 10-009-003 | 8MP | 1/1.8" | 3.8-16 | CS | Manual | F1.5 | 12.53 | -20ºC~+60ºC |
| 4 | 10-009-004 | 5MP | 1/1.7" | 12-50 | CS | Manual | F1.6 | >8.26 | -30ºC~+70ºC |
| 5 | 10-009-005 | 6MP | 1/2.7" | 5-50 | CS | Manual | F1.4 | 7.3 | -20ºC~+60ºC |
| 6 | 10-009-021 | 5MP | 1/2.5" | 2.8-9.0 | CS | DC-Iris | F1.4 | -20ºC~+60ºC | |
| 7 | 10-009-022 | 4MP | 1/2.7" | 2.8-12 | CS | DC-Iris | F1.4 | 12.53 | -20ºC~+60ºC |
| 8 | 10-009-023 | 5MP | 1/2.7" | 2.8-12 | CS | DC-Iris | F1.4 | -20ºC~+60ºC | |
| 9 | 10-009-024 | 6MP | 1/1.8" | 3.6-10 | CS | DC-Iris | F1.6 | -20ºC~+60ºC | |
| 10 | 10-009-025 | 5MP | 1/2.5" | 6-22 | CS | DC-Iris | F1.6 | -20ºC~+60ºC | |
| 11 | 10-009-026 | 4MP | 1/2.7" | 5-50 | CS | DC-Iris | F1.6 | -20ºC~+60ºC | |
| 12 | 10-009-027 | 6MP | 1/2.7" | 5-50 | CS | DC-Iris | F1.4 | 7.3 | -20ºC~+60ºC |
| 13 | 10-009-028 | 2MP | 9.2" | 50-750 | Non-standard | P-Iris | F3.5 | -20ºC~+60ºC | |
| 14 | 10-009-029 | 3MP | 1/1.8" | 4-18 | C | DC-Iris | F1.6 | -20ºC~+60ºC | |
| 15 | 10-009-030 | 8MP | 1/1.8" | 3.8-16 | CS | DC-Iris | F1.5 | -20ºC~+60ºC | |
| 16 | 10-009-031 | 5MP | 1/1.7" | 12-50 | CS | DC-Iris | F1.6 | >8.26 | -30ºC~+70ºC |
| 17 | 10-009-032 | 8MP | 1/1.7" | 8-25 | CS | DC-Iris | F1.4 | -20ºC~+60ºC | |
| 18 | 10-009-033 | 8MP | 1/1.7" | 11-50 | CS | DC-Iris | F1.4 | -20ºC~+60ºC | |
| 19 | 10-009-034 | 8MP | 1/1.7" | 16-70 | C | DC-Iris | F1.4 | 8.58~11.69 | -30ºC~+70ºC |
| 20 | 10-009-035 | 8MP | 1/1.7" | 12-36 | C | DC-Iris | F1.6 | -20ºC~+60ºC | |
| 21 | 10-009-036 | 12MP | 1/1.8" | 12-40 | CS | P-Iris | F1.6 | -20ºC~+60ºC | |
| 22 | 10-009-037 | 8MP | 1/1.2" | 20-70 | CS | P-Iris | F1.3-1.5 | -20ºC~+60ºC | |
| 23 | 10-009-038 | 3MP | 2/3" | 8-20 | C | Manual Iris | F1.7 | -20ºC~+60ºC | |
| 24 | 10-009-039 | 8MP | 1/1.8" | 10-50 | Non-standard | DC-Iris | F1.3-1.5 | -20ºC~+60ºC | |
| 25 | 10-009-064 | 8MP | 1/1.7" | 35 | M12 | Manual | F2.4 | 7.569 | -30ºC~+70ºC |
| 26 | 10-009-065 | 12MP | 1/1.7" | 50 | M12 | Manual | F2.8 | 24.2 | -30ºC~+70ºC |
