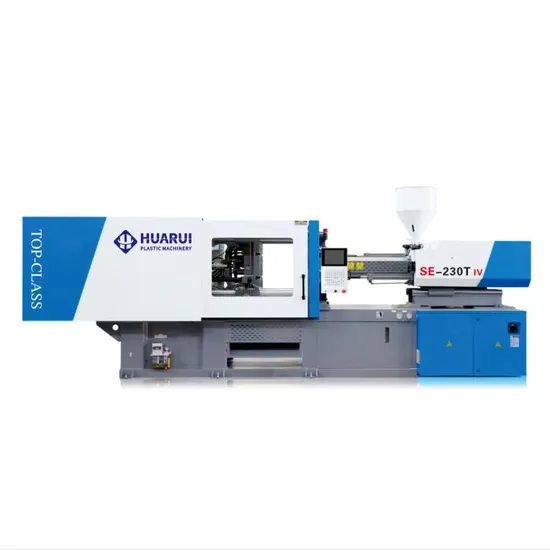

Injection Molding Machine Automatic for Plastic Food Box and Container Molding

Injection Molding Machine Automatic for Plastic Food Box and Container Molding

US$19,900.00-28,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-230T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
152/188/228cm³/Sec
Weight
7300kg
Motor Power
16kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
5.8*1.4*2.2m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Automatic Plastic Lunch Food Box and Container Making Injection Molding Machine
Product Parameters
SE-230T IV Plastic Injection Molding Machine Information
Item Unit A B C
Screw diameter mm 45 50 55
Theoretical shot volume cm³ 398 491 594
Shot weight (PS) g 362 447 541
Shot weight (PS) oz 12.8 15.8 19.1
Length/Diameter ratio L/D 22.2 20 18.2
Injection pressure Bar 2299 1862 1539
Injection rate cm³/sec 152 188 228
Max.screw speed rpm 200
Clamping force KN 2300
Max.daylight mm 820*770
Open stroke mm 520
Space Between Tie-bars mm 570*520
Min mould dimension mm 220
Mould thickness range mm 570
Ejector force KN 80
Ejector stroke mm 150
No.of ejector pins unit 9
Max.motor power KW 26
System pressure MPa 175
Heater input power KW 16
Oil filling capacity L 200
Machine size M 5.8*1.4*2.2
Net weight KG 7300

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
